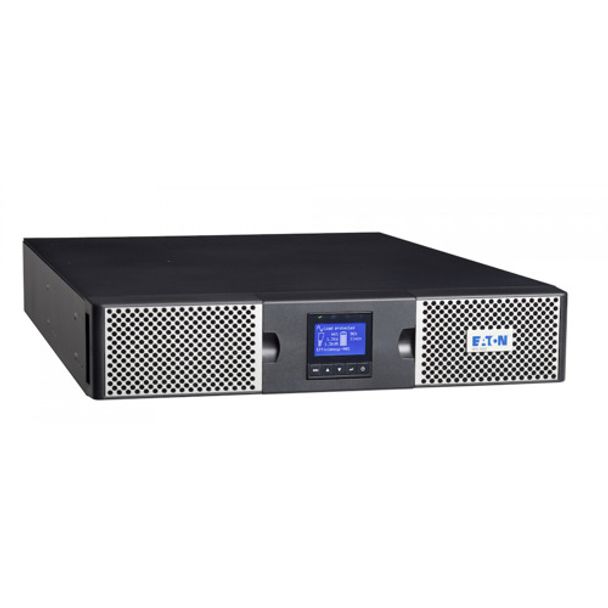

Eaton 9PX2000IRTAU 9PX 2000VA Rack/Tower 10Amp Input 230V (Rail Kit Included)
Model
9PX2000IRTAU
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
$3,599.00
Eaton 9PX 2000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included)
9PX2000iRTAU
Eaton 9PX 2000VA RTAU (tower/rack 2U)
| General | |
| Topology | On-line double conversion with Power Factor Correction (PFC) system |
| Configuration | Rack/Tower |
| Part Number | 9PX2000iRTAU |
| Rating (VA/Watts) | 2000/1800 |
| Dimensions (H x W x D, mm) | 86.5 x 440 x605 |
| Weight (kg) | 27.4 |
| Warranty | 3 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
 |
| Input Voltage Range | 176-276V without derating (up to 100-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Nominal Voltage | 200/208/220/230/240V |
| Output Receptacles |
(6) IEC-320-C13
 (2) Aust. 10A
 |
| Remotely controlled sockets | 2 Groups: (2) Aust. 10A & (2) IEC C13 10A |
| Efficiency (Normal Mode) | Up to 93% in online mode (Up to 98% in Hi-efficiency mode) |
| Output Frequency | 50/60 Hz autoselect, frequency converter mode |
| Battery | |
| Battery Management | ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Extended Battery Capability | EBM (2U) |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | 40dB |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star |
