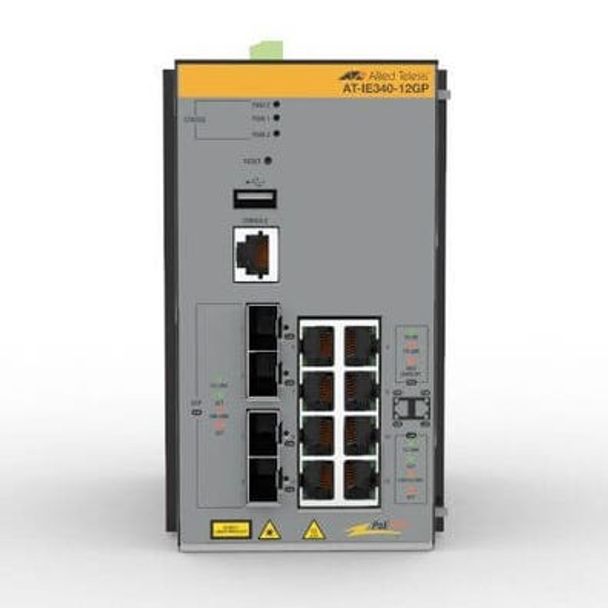

Allied Telesis AT-IE340-12GP-80 8x 10/100/1000T POE+ ports 4x 100/1000X SFP Advanced L3 Industrial Switch

Ruggedized switches built to provide enduring performance in harsh environments, such as manufacturing, transportation, and physical security. IE340 switches deliver Power over Ethernet (PoE+) with the performance and reliability demanded by deployments in the age of the Internet of Things (IoT).

FEATURES

• Offering high throughput, rich functionality, and advanced security features
• Ruggedized to meet the latest industrial Ethernet standards for temperature, vibration, and electrical noise
• Support highly stable and reliable network switching, with a recovery time of less than 50ms
• Superior security including SSL, SSH, 802.1X, MAC, IP filtering, RADIUS, TACACS+ and VLAN
• Device management through Web GUI, SNMP, Telnet, SSH, or Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)
• AlliedWare Plus™ feature-rich operating system
• Autonomous Management Framework™ Plus (AMF Plus) node
• OpenFlow for SDN
• Active Fiber Monitoring™ (AFM) detects and prevents attempts to tamper with fiber links
• Industrial automation protocol support (Modbus/TCP)
• Ethernet Protection Switched Ring (EPSRing™)
• Ethernet Ring Protection Switching (ITU-T G.8032)
• Routing capability (ECMP, OSPF, RIP, Static and BGP)
• Upstream Forwarding Only (UFO)
• Precise time synchronization (IEEE 1588 PTP)
• IEEE 802.3at PoE+ sourcing (30W)
• Dynamic PoE power allocation
• Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
• Enhanced Thermal Shutdown
• Redundant power inputs
• Alarm input and output ports
• Fanless design for high reliability and silent operation

SPECIFICATIONS

• 10/100/1000T (RJ-45) Copper Ports: 8
• 100/1000X SFP Ports: 4
• 1000X SFP Ports: -
• Total Ports: 12
• PoE Enabled Ports: 8
• Switching Fabric: 24Gbps
• Forwarding Rate: 17.8Mpps
