PRODUCT DESCRIPTION

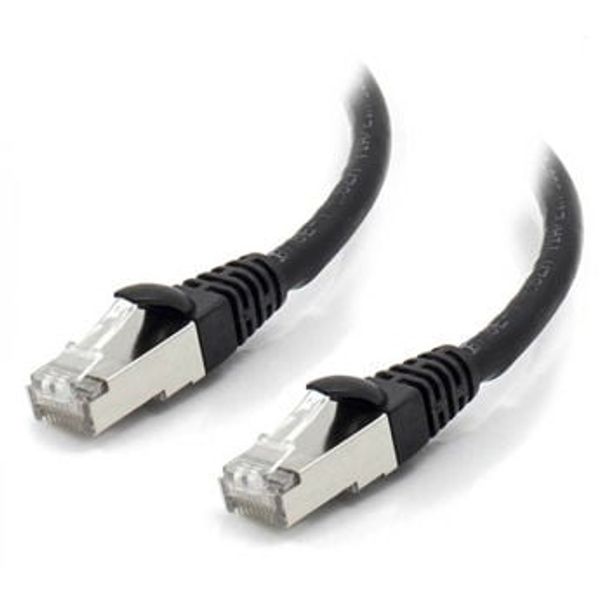

ALOGIC Cat6A shielded network cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC Cat6A cabling system provides an End to End solution that provides a guaranteed 500 MHz of usable bandwidth. The ALOGIC Cat6A solution consists of Pre Terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.
PRODUCT SPECIFICATION
|
Vendor
|
ALOGIC
|
|
Wiring Scheme:
|
T568A
|
|
Standard:
|
Category 6a TIA/EIA-568C-2
|
|
Connector
|
50 micron gold-plated RJ45
|
|
Temperature Rating:
|
75°C
|
|
Voltage Rating :
|
30V
|
|
Approvals
|
A-Tick,ETL,UL,IEEE,RoHS Compliant
|
|
Warranty
|
Lifetime
|
|
Package Type
|
Retail Polybag
|
|
Jacket
|
LSZH (Low Smoke Zero Halogen)
|
|
Connector Type
|
8P8C (RJ45)
|
|
Conductor Type
|
26AWG (7/0.16), Stranded Bare Copper
|
PRODUCT FEATURE
* Performance rated for 500 MHz bandwidth
* Suit for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower
* Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage)
* Overall Copper Braided Shielded
* Comes with LSZH (Low Smoke Zero Halogen) Jacket
* Category 6a UTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
* Snag-free strain relief molded boot provides secure and accurate connection
* Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
* Lifetime Warranty
* A-Tick Complaint as per ACMA requirement
* ETL verified to TIA/EIA-568C.2 Category 6a
* Complaint to IEC 802.3an standards & ISO/IEC 11801
* UL Approved
|
|
|
|
