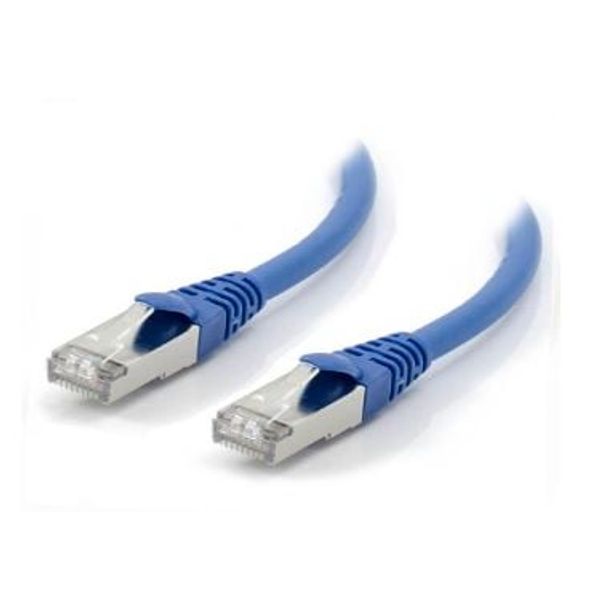

ALOGIC C6A-20-Blue-SH 20m Blue 10G Shielded CAT6A

SKU
CAB-CAT6-20BLSH
Model
C6A-20-Blue-SH
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
In Stock
West Melbourne (Pickup)
In Stock
$46.00
ALOGIC C6A-20-Blue-SH 20m Blue 10G Shielded CAT6A
Alogic
9319866088864
Add to Wish List

OVERVIEW:

ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC CAT6a cabling system provides an End to End solution that provides a guaranteed 500 MHz of usable bandwidth. The ALOGIC CAT6a solution consists of Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.

ALOGIC CAT6a shielded snagless patch cables come in 10 different colours and a range of lengths from 0.5m to 30m, which lets you colour code your installation.



FEATURES:

  • Performance rated for 500 MHz bandwidth
  • Suit for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower
  • Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage)
  • Overall Copper Braided Shielded
  • Comes with LSZH (Low Smoke Zero Halogen) Jacket
  • Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
  • Snag-free strain relief molded boot provides secure and accurate connection
  • Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
  • Lifetime Warranty
  • A-Tick Complaint as per ACMA requirement
  • ETL verified to TIA/EIA-568C.2.1 Category 6a
  • Complaint to IEC 802.3an standards & ISO/IEC 11801
  • UL Approved



Connectors: RJ45 Male to RJ 45 MALE



SPECIFICATIONS:

Vendor

ALOGIC

Wiring Scheme: T568A
Standard: Category 6a TIA/EIA-568C-2.1
Connector: 50 micron gold-plated RJ45
Temperature Rating: 75°C
Voltage Rating : 30V
Approvals A-Tick,ETL,UL,IEEE,RoHS Compliant
Warranty Lifetime
Package Type Polybag
Jacket LSZH (Low Smoke Zero Halogen)
Connector Type 8P8C (RJ45)
Conductor Type 26AWG (7/0.16), Stranded Bare Copper
