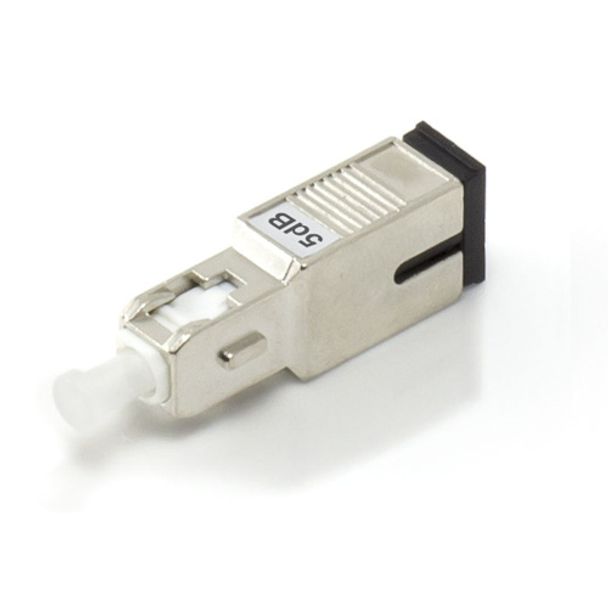

Alogic FA-SC-SM-05 SC Singlemode Male to Female Attenuator 05dB
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
The Fibre Attenuators are used in the fibre optic links to reduce the optical power at a certain fixed rate. SC fiber optic attenuators work in 125 -1625nm range with optional attenuation value from 1dB to 3 dB.SC UPC fiber optic attenuator return loss is more than 55dB.ALOGIC SC attenuators are manufactured and tested according to the industrial standards and they are 1 % compatible to use with equipment and components from other suppliers.
Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss UPC >55dB
APC >65dB
Attenuation 1 ~ 7 dB ±0.5dB
Accuracy 8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH
