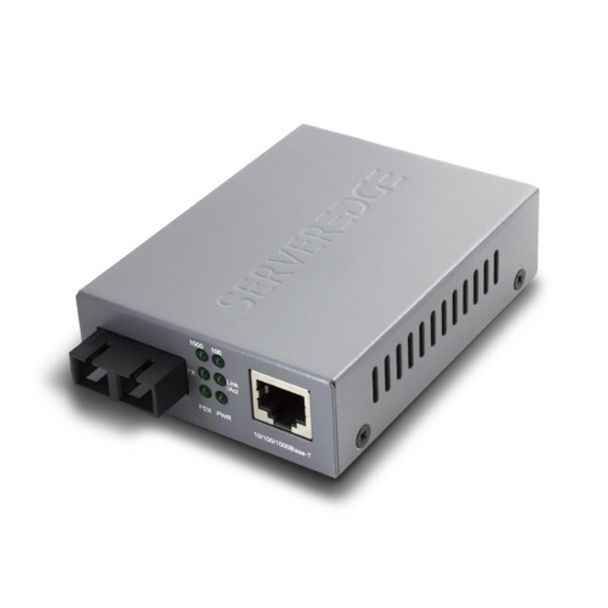

Serveredge SED-1000MSC(550m) 10/100/1000Base-TX to 1000Base-FX Multimode SC Fibre Media Converter (550m)
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
The Serveredge Gigabit Media Converter SED-1000MSC(550m) allows you to transparently connect your Gigabit Copper cabling system (10Base-T, 100Base-TX or 1000Base-T) with the fibre optic cabling system(1000Base-FX). This media converter provides a long distance connection between legacy 10BaseT, 100BaseTX networks and the 1000Base Gigabit Ethernet networks.The SED-1000MSC(550m) incorporates advances features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This Unit can be used as a standalone unit or as a slide-in module in a Media
Converter Chassis.
* PERFORMANCE
Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)Throughput @ 1000Base: 1,488,110 pps (64-byte packets)
FIBER INTERFACE, MULTIMODE MODELS
Type: Laser Diode
Wavelength: 850 nm nominal
Maximum Output Power: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB
PHYSICAL CHARACTERISTICS
Case dimensions: 110mm x 81mm x 23mm
Weight: 150 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity: 10 ~ 90%, non-condensing
POWER
External power adapter: 12 Volts DC; 600 mA
Power Consumption: 5 Watts Maximum
* Built-In Twisted-Pair Port 10/100/1000Switch
* Auto-Negotiation RJ45 Connector with Auto-MDIX
* SC, ST, MTRJ or LC Connector
* LEDs for Functions, Links & Activity
* Link Fault Signaling For Use with Managed Switches
* 1024 Mac Address Capacity
* Store and Forward Architecture
* Singlemode Spans up to 12 Km
* Wall or Chassis Mountable
* Compliant to FCC part 15 Class A, CE Mark, CTick
* Warranty: 2 Years
| GTIN | 9350784002389 |
|---|
