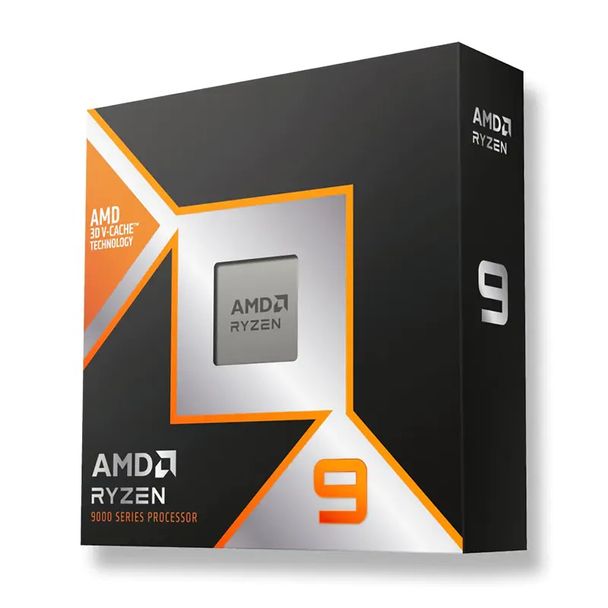

AMD 100-100001368WOF Ryzen 9 9900X3D Desktop Processor
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | In Stock |
SPECIFICATIONS
|
GENERAL |
|
|
Name |
AMD Ryzen™ 9 9900X3D |
|
Family |
Ryzen |
|
Series |
Ryzen 9000 Series |
|
Form Factor |
Desktops , Boxed Processor |
|
AMD PRO Technologies |
No |
|
Former Codename |
Granite Ridge AM5 |
|
Architecture |
Zen 5 |
|
# of CPU Cores |
12 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
24 |
|
Max. Boost Clock |
Up to 5.5 GHz |
|
Base Clock |
4.4 GHz |
|
L1 Cache |
960 KB |
|
L2 Cache |
12 MB |
|
L3 Cache |
128 MB |
|
Default TDP |
120W |
|
Processor Technology for CPU Cores |
TSMC 4nm FinFET |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
Package Die Count |
3 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES , AMD-V , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
|
Thermal Solution (PIB) |
Not Included |
|
Recommended Cooler |
Liquid cooler recommended for optimal performance |
|
Max. Operating Temperature (Tjmax) |
95°C |
|
*OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
CONNECTIVITY |
|
|
Native USB 4 (40Gbps) |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) |
1 |
|
PCI Express® Version |
PCIe® 5.0 |
|
Native PCIe® Lanes (Total/Usable) |
28 , 24 |
|
NVMe Support |
Boot , RAID0 , RAID1 , RAID5 , RAID10 |
|
System Memory Type |
DDR5 |
|
Memory Channels |
2 |
|
Max. Memory |
192 GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
|
ECC Support |
Yes (Requires mobo support) |
|
GRAPHICS CAPABILITIES |
|
|
Graphics Model |
AMD Radeon™ Graphics |
|
Graphics Core Count |
2 |
|
Graphics Frequency |
2200 MHz |
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
|
KEY FEATURES |
|
|
Supported Technologies |
AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| GTIN | 730143315579 |
|---|
