GENERAL SPECIFICATIONS
|
|
|
Name
|

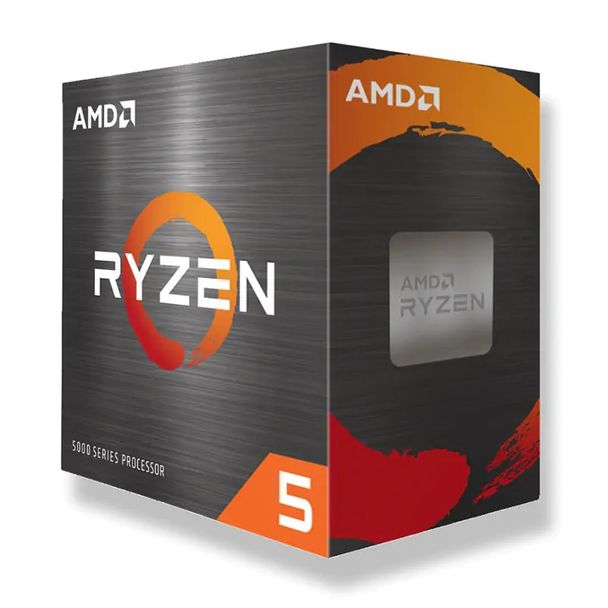

AMD Ryzen™ 5 5600XT
|
|
Family
|
Ryzen
|
|
Series
|
Ryzen 5000 Series
|
|
Form Factor
|
Desktops , Boxed Processor
|
|
Former Codename
|
Vermeer
|
|
Architecture
|
Zen 3
|
|
# of CPU Cores
|
6
|
|
Multithreading (SMT)
|
Yes
|
|
# of Threads
|
12
|
|
Max. Boost Clock
|
Up to 4.7 GHz
|
|
Base Clock
|
3.7 GHz
|
|
L1 Cache
|
384 KB
|
|
L2 Cache
|
3 MB
|
|
L3 Cache
|
32 MB
|
|
Default TDP
|
65W
|
|
Processor Technology for CPU Cores
|
TSMC 7nm FinFET
|
|
Processor Technology for I/O Die
|
12nm (Globalfoundries)
|
|
CPU Compute Die (CCD) Size
|
74mm²
|
|
I/O Die (IOD) Size
|
125mm²
|
|
Package Die Count
|
2
|
|
Unlocked for Overclocking
|
Yes
|
|
CPU Socket
|
AM4
|
|
Supporting Chipsets
|
X570 , X470 , X370 , B550 , B450 , B350 , A520
|
|
CPU Boost Technology
|
Precision Boost 2
|
|
Instruction Set
|
x86-64
|
|
Supported Extensions
|
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
|
|
Thermal Solution (PIB)
|
AMD Wraith Stealth
|
|
Max. Operating Temperature (Tjmax)
|
95°C
|
|
*OS Support
|
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
|
|
CONNECTIVITY
|
|
|
Native USB 3.2 Gen 2 (10Gbps)
|
4
|
|
Native USB 3.2 Gen 1 (5Gbps)
|
0
|
|
Native USB 2.0 (480Mbps)
|
0
|
|
Native SATA Ports
|
2
|
|
PCI Express® Version
|
PCIe® 4.0
|
|
Native PCIe® Lanes (Total/Usable)
|
24 , 20
|
|
Additional Usable PCIe Lanes from Motherboard
|
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
|
|
NVMe Support
|
Boot , RAID0 , RAID1 , RAID10
|
|
System Memory Type
|
DDR4
|
|
Memory Channels
|
2
|
|
Max. Memory
|
128 GB
|
|
System Memory Subtype
|
UDIMM
|
|
System Memory Specification
|
Up to 3200 MT/s
|
|
Max Memory Speed
|
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
|
|
ECC Support
|
Yes (Requires mobo support)
|
|
GRAPHICS CAPABILITIES
|
|
|
Graphics Model
|
Discrete Graphics Card Required
|
|
KEY FEATURES
|
|
|
Supported Technologies
|
AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
|
