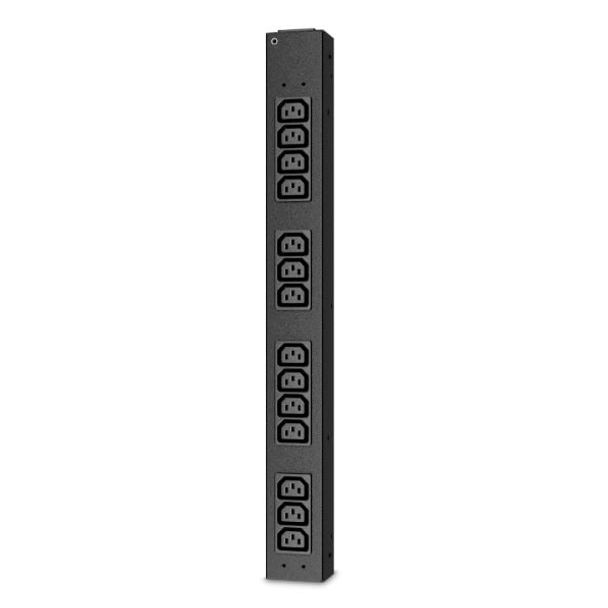

APC AP6003A Rack PDU Basic Half Height 100-240V2
Model
AP6003A
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$308.00
Rack PDU Basic Half Height 100-240V20A 220-240V16A (14) C13
AP6003A Features
RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (14) C13
Reliable rack power distribution
Includes: Installation guide, Safety guide
Basic Rack PDU Features & Benefits
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Marketing Features
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Technical Specifications
Output
Nominal Output Voltage
100V, 120V, 200V, 208V, 230V, 240V
Maximum Total Current Draw
20
Output Connections
(14) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Acceptable Input Voltage
100-240VAC
Load Capacity
3300VA
Maximum Input Current
20A
Maximum Line Current
20A
Regulatory Derated Input Current (North America)
16A
Physical
Maximum Height
523MM, 52.3CM
Maximum Width
56MM, 5.6CM
Maximum Depth
47MM, 4.7CM
Net Weight
1.88KG
Shipping weight
2.55KG
Shipping Height
612MM, 61.2CM
Shipping Width
123MM, 12.3CM
Shipping Depth
107MM, 10.7CM
Color
Black
Units per Pallet
96.0
Environmental
Operating Temperature
0 - 50 °C
Operating Relative Humidity
5 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 65 °C
Storage Relative Humidity
5 - 95 %
Storage Elevation
0-15000meters
Conformance
Approvals
cUL Listed, UL Listed
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
| GTIN | 731304327769 |
|---|
