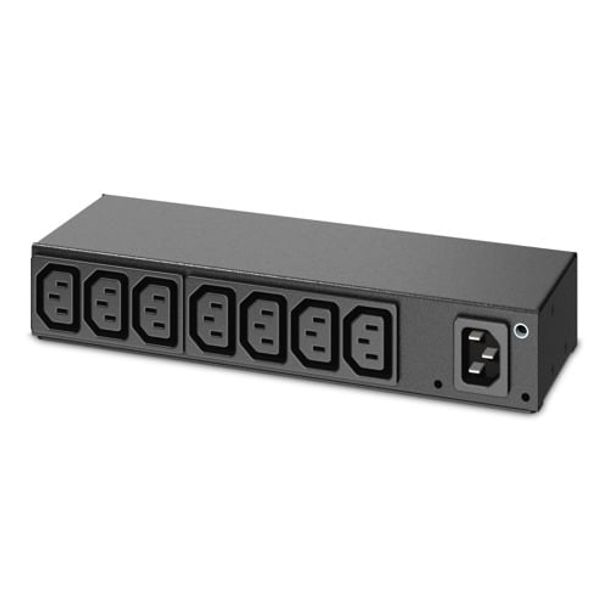

APC AP6015A Rack PDU, Basic, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13
Model
AP6015A
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
$109.00
Apc AP6015A RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13
AP6015A Features
RACK PDU, BASIC, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13
Reliable rack power distribution
Includes: Installation guide, Safety guide
Basic Rack PDU Features & Benefits
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Marketing Features
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Output
Nominal Output Voltage
100V, 120V, 200V, 208V, 230V, 240V
Maximum Total Current Draw
15
Output Connections
(8) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
100V, 120V, 200V, 208V, 230V, 240V
Input frequency
50/60 Hz
Input Connections
IEC-320 C14
Acceptable Input Voltage
100-240VAC
Load Capacity
2300VA
Maximum Input Current
15A
Maximum Line Current
15A
Regulatory Derated Input Current (North America)
12A
Physical
Maximum Height
240MM, 24.0CM
Maximum Width
44MM, 4.4CM
Maximum Depth
93MM, 9.3CM
Rack Height
1U
Net Weight
0.91KG
Shipping weight
1.37KG
Shipping Height
286MM, 28.6CM
Shipping Width
210MM, 21.0CM
Shipping Depth
130MM, 13.0CM
Color
Black
Units per Pallet
192.0
Conformance
Approvals
cUL Listed, CE, EAC, IRAM, UL Listed, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Proposition 65 Warning
Available in Documentation tab
| GTIN | 731304327790 |
|---|
