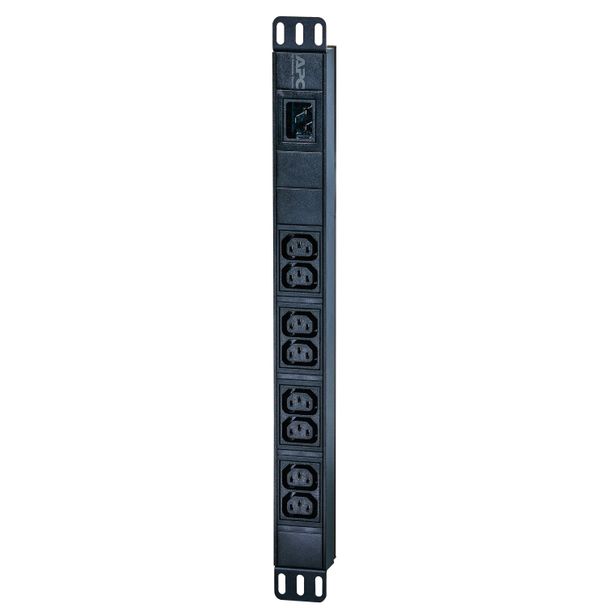

APC EPDU1016B Easy PDU Basic 1U 16A 230V 8C13
Model
EPDU1016B
| Location | Availability |
|---|---|
Online (Delivery) | ETA (22/12/2026) |
Notting Hill (Pickup) | ETA (22/12/2026) |
Preston (Pickup) | ETA (22/12/2026) |
West Melbourne (Pickup) | ETA (22/12/2026) |
$159.00
APC EPDU1016B Easy PDU Basic 1U 16A 230V 8C13
Easy PDU Basic 1U 16A 230V (8)C13
APC Easy Basic Rack PDUs provide reliable rack power distribution via a single input with multiple output receptacles and distribute power from low amperage single phase circuits to higher-power 3-phase solutions.
Product Features
- Ultra-light weight thanks to aluminum housing
- Support both toolless mounting and bracket mounting
- Built-in input cord with Industrial connector for vertical PDU
- Low-profile in depth, more convenience for equipment installation
- User-friendly and simple Web interface and LCD screen
- Support network port, easy for data communication
- Field-replaceable control module, easy for maintenance
| Specifications | |||
| Electrical | Nominal Voltage | 230VAC | |
| Input Circuit | 16A | ||
| Input Frequency | 50/60Hz | ||
| Input Connector | IEC-320 C20 200-240V Inlet | ||
| Input Cord Length | 2.5m | ||
| Output Voltage | 200-240VAC, 1PH | ||
| Output Receptacles | ( 8 ) C13 | ||
| Circuit Breakers | N/A | ||
| Physical | Mount Style | Horizontal (19" rack mountable) | |
| Width | 488mm | ||
| Height | 44.4mm | ||
| Depth | 44.4mm | ||
| Housing Material | Aluminum extrusion | ||
| Tool-less Mounting | N/A | ||
| Colour | Black | ||
| Environmental | Operating Temperature | -5oC to +45oC | |
| Operating Humidity | 5-95%RH, non-condensing | ||
| Elevation Operating/Storage | 0–3000m / 0–15000m | ||
| Regulatory | EMC | CE, followed by standard EN55035, EN55032, EN55024 | |
| Safety | CE, TUV, followed by standard EN/IEC62368-1 | ||
| Environment | RoHS, REACH | ||
| Package | Rack Mounting Brackets | M6x16mm Screw (4pcs), M6 Cage Nut (4pcs) | |
| Safety Sheet | Included | ||
| Installations Instructions | Included | ||
| Package Dimensions | 560*150*80mm | ||
| Weight/Shipping Weight | 0.58KG/1.18KG | ||
| Warranty | Length | 1 Year | |
| GTIN | 0731304404996 |
|---|
