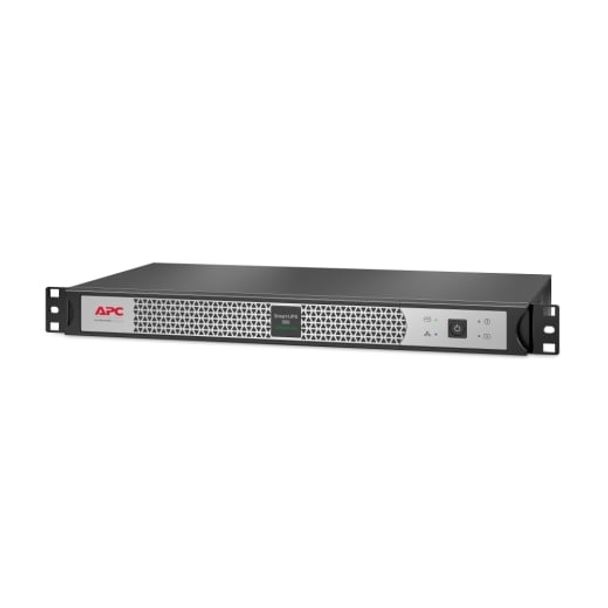

APC SCL500RMI1UNC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
Model
SCL500RMI1UNC
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$2,329.00
APC SCL500RMI1UNC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
-
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other ...
-
Includes: Installation guide, Rack Mounting support rails, USB cable
Technical Specifications
Output
Max Configurable Power (Watts)
400Watts / 500VA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Waveform type
Sine wave
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
47 - 63 Hz
Input voltage range for main operations
208 - 253V
Batteries & Runtime
Battery type
Lithium Ion
Typical recharge time
3hour(s)
Expected Battery Life (years)
8 - 10
Battery Charge Power (Watts)
10Watts
Battery Volt-Amp-Hour Capacity
30
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
510Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
44MM, 4.4CM
Maximum Width
432MM, 43.2CM
Maximum Depth
232MM, 23.2CM
Net Weight
4.1KG
Shipping weight
6.49KG
Shipping Height
168MM, 16.8CM
Shipping Width
590MM, 59.0CM
Shipping Depth
337MM, 33.7CM
Color
Black
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
10 - 90 (non-condensing) %
Operating Elevation
0-1968.3meters
Storage Temperature
-10 - 40 °C
Storage Relative Humidity
10 - 90 (non-condensing) %
Storage Elevation
0-14763.6meters
Audible noise at 1 meter from surface of unit
45.0dBA
Conformance
Approvals
C-tick, CE, EAC, GS Mark, IEC 60950, IEC 62040-1-1, IEC 62040-1-2, UL 1973
Equipment protection policy
Lifetime : $150000
Standard warranty
5 year repair or replace
Sustainable Offer Status
RoHS
Compliant
Battery Directive
Compliant
| GTIN | 0731304402565 |
|---|
