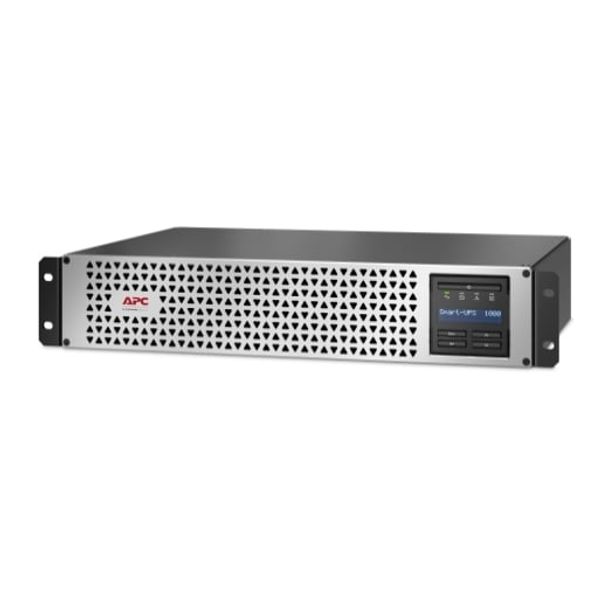

APC SMTL1000RMI2UCSmart-UPS Lithium Ion, Short Depth 1000VA, 230V with SmartConnect

Model
SMTL1000RMI2UC
LocationAvailability
Online (Delivery)
ETA (25/06/2026)
Notting Hill (Pickup)
ETA (25/06/2026)
Preston (Pickup)
ETA (25/06/2026)
West Melbourne (Pickup)
ETA (25/06/2026)
$2,699.00
APC SMART-UPS LITHIUM ION, SHORT DEPTH 1000VA, 230V WITH SMARTCONNECT, 5 YEAR WTY

SMTL1000RMI2UC Features

Key Features

Output power capacity
800Watts / 1.0kVA
Rack Height
2U
Output Connections
(6) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC-320 C14
APC Smart-UPS Lithium Ion, Short Depth 1000VA, 230V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Lithium-ion battery
    Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Short-depth rack compatibility
    Compact design fits comfortably in short-depth rack applications.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.



Technical Specifications

Output

Max Configurable Power (Watts)
800Watts / 1.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
6ms typical : 10ms maximum

Input

Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
151 - 302V
Number of Power Cords
1
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Lithium Ion
Typical recharge time
3hour(s)
Expected Battery Life (years)
8 - 10
Battery Charge Power (Watts)
79Watts
Battery Volt-Amp-Hour Capacity
239

Communications & Management

Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
680Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
86MM, 8.6CM
Maximum Width
438MM, 43.8CM
Maximum Depth
318MM, 31.8CM
Net Weight
16.33KG
Shipping weight
18.6KG
Shipping Height
229MM, 22.9CM
Shipping Width
584MM, 58.4CM
Shipping Depth
472MM, 47.2CM
Color
Black
Units per Pallet
16.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-10 - 40 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-7500meters
Audible noise at 1 meter from surface of unit
41.0dBA
Online thermal dissipation
70.0BTU/hr

Conformance

Approvals
C-tick, CE, EAC, GS Mark, IEC 60950, IEC 62040-1-1, IEC 62040-1-2, RCM, UL 1973
Equipment protection policy
Lifetime : $150000
Standard warranty
5 year repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
