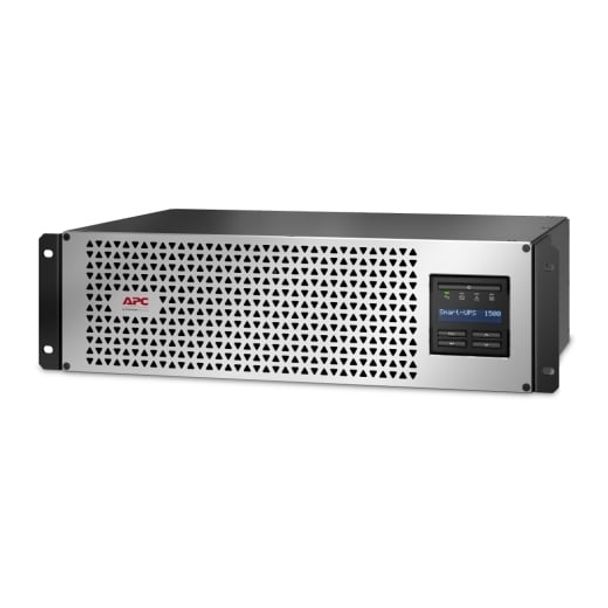

APC SMTL1500RMI3UC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect
Model
SMTL1500RMI3UC
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$3,442.00
APC SMART-UPS LITHIUM ION, SHORT DEPTH 1500VA, 230V WITH SMARTCONNECT, 5 YEAR WTY
SMTL1500RMI3UC Features
Key Features
Output power capacity
1.35kWatts / 1.5kVA
Rack Height
3U
Output Connections
(6) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC-320 C14
APC Smart-UPS Lithium Ion, Short Depth 1500VA, 230V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utility costs, generates less heat.
- Lithium-ion battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Short-depth rack compatibility
Compact design fits comfortably in short-depth rack applications.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Technical Specifications
Output
Max Configurable Power (Watts)
1.35kWatts / 1.5kVA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
160 - 286V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lithium Ion
Typical recharge time
3hour(s)
Expected Battery Life (years)
8 - 10
Battery Charge Power (Watts)
100Watts
Battery Volt-Amp-Hour Capacity
300
Efficiency
Communications & Management
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
131MM, 13.1CM
Maximum Width
438MM, 43.8CM
Maximum Depth
302MM, 30.2CM
Net Weight
19.5KG
Shipping weight
22.68KG
Shipping Height
279MM, 27.9CM
Shipping Width
584MM, 58.4CM
Shipping Depth
448MM, 44.8CM
Units per Pallet
12.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-10 - 40 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-7500meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
135.0BTU/hr
Protection Class
IP 20
Conformance
Approvals
CE, CSA, EAC, GS Mark, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973
Equipment protection policy
Lifetime : $150000
Standard warranty
5 year repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains SVHCs
Battery Directive
Compliant
| GTIN | 0731304402619 |
|---|
