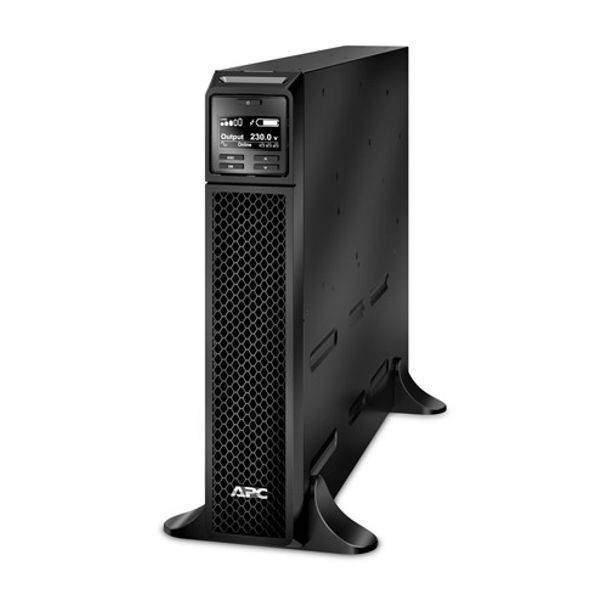

APC SRT1500RMXLI-NC Smart-UPS SRT 1500VA RM 230V Network
Model
SRT1500RMXLI-NC
| Location | Availability |
|---|---|
Online (Delivery) | ETA (30/06/2026) |
Notting Hill (Pickup) | ETA (30/06/2026) |
Preston (Pickup) | ETA (30/06/2026) |
West Melbourne (Pickup) | ETA (30/06/2026) |
$4,126.40
APC SMART-UPS SRT 1500VA RM 230V NETWORK
SRT1500RMXLI-NC Features
Key Features
Output power capacity
1.5kWatts / 1.5kVA
Rack Height
2U
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C14, Schuko CEE 7 / EU1-16P
Cord Length
6ft (1.8meters)
APC Smart-UPS SRT 1500VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Communication cable, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Output
Max Configurable Power (Watts)
1.5kWatts / 1.5kVA
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Built-in bypass
Input
Input frequency
40 - 70 Hz Auto-sensing
Input voltage range for main operations
50 - 150 40% load, 80 - 150V
Number of Power Cords
1
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
3hour(s)
Nominal Battery Voltage
48 V
Replacement Battery
Expected Battery Life (years)
3 - 5
Battery Charge Power (Watts)
108 Watts
Extendable Run Time
1
Extended Run Options
Runtime
Communications & Management
Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Pre-Installed SmartSlot™ Cards
Control panel
Multifunction LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
432Joules
Physical
Maximum Height
3.35inches (85MM, 8.5CM)
Maximum Width
17.01inches (432MM, 43.2CM)
Maximum Depth
19.88inches (505MM, 50.5CM)
Net Weight
46.3lbs. (21.0KG)
Shipping weight
65.26lbs. (29.6KG)
Shipping Height
9.69inches (246MM, 24.6CM)
Shipping Width
23.39inches (594MM, 59.4CM)
Shipping Depth
29.49inches (749MM, 74.9CM)
Color
Black
Units per Pallet
12.0
Environmental
Operating Temperature
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 10000ft (0 - 3048meters)
Storage Temperature
-20 - 50 °C
Storage Elevation
0 - 50000ft (0 - 15240meters)
Audible noise at 1 meter from surface of unit
50.0dBA
Online thermal dissipation
317.0BTU/hr
Protection Class
IP20
Conformance
Approvals
CE, EAC
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery
| GTIN | 731304340294 |
|---|
