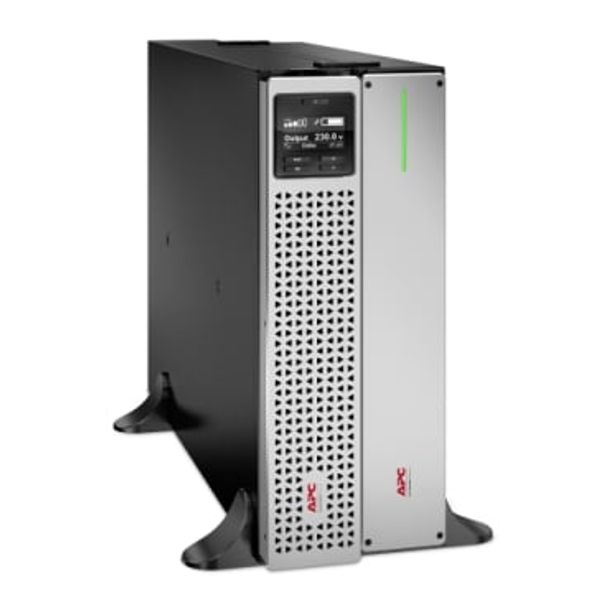

APC SRTL1500RM4UXLI Smart-UPS On-Line 1500VA Lithium-ion Rackmount Extended Long Runtime Rail Kit Included
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
SPECIFICATIONS
|
Main Input Voltage |
230 V |
|
Other Input Voltage |
220 V |
|
Main Output Voltage |
230 V |
|
Other Output Voltage |
220 V |
|
Rated power in W |
1350 W |
|
Rated power in VA |
1500 VA |
|
Input Connection Type |
IEC 60320 C14 |
|
Output connection type |
8 IEC 60320 C13 |
|
Number of rack unit |
4U |
|
Cable length |
1.83 m |
|
Number of cables |
1 |
|
Battery type |
Li-Ion (Lithium-Ion) |
|
Number of battery filled slots |
0 |
|
Number of battery free slots |
0 |
|
Battery voltage |
48 V |
|
Battery charger power |
103 W rated |
|
Battery life |
5…10 year(s) |
|
Extended runtime |
1 |
|
UPS type |
Double conversion online |
|
Product web sub-family |
Lithium-Ion |
|
Number of power module free slots |
0 |
|
Number of power module filled slots |
0 |
|
Redundant |
No |
|
Colour |
Black with silver front bezel |
|
Height |
8.5 cm |
|
Width |
43.2 cm |
|
Depth |
56 cm |
|
Net weight |
13.7 kg |
|
Mounting preference |
No preference |
|
Mounting mode |
Rack-mounted with kit |
|
Two post mountable |
0 |
|
USB compatible |
Yes |
|
Mounting position |
Horizontal Vertical |
|
Network frequency |
40...70 Hz auto-sensing |
|
Input voltage limits |
160...275 V |
|
Maximum configurable power in VA |
1500 VA |
|
Maximum configurable power in W |
1350 W |
|
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Wave type |
Sine wave |
|
Harmonic distortion |
Less than 2 % |
|
Crest factor |
3 : 1 |
|
Bypass type |
Built-in bypass |
|
Product certifications |
CE |
|
Marking |
CE Mark |
|
Ambient air temperature for operation |
0…40 °C |
|
Relative humidity |
0…95 % non-condensing |
|
Operating altitude |
0...10000 ft |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage Relative Humidity |
0…95 % non-condensing |
|
Storage altitude |
0.00…15240.00 m |
|
Acoustic level |
50 dBA |
|
Heat dissipation |
450 Btu/h |
|
IP degree of protection |
IP20 |
|
Free slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency power off |
Yes |
|
Surge energy rate |
340 J |
| GTIN | 731304508953 |
|---|
