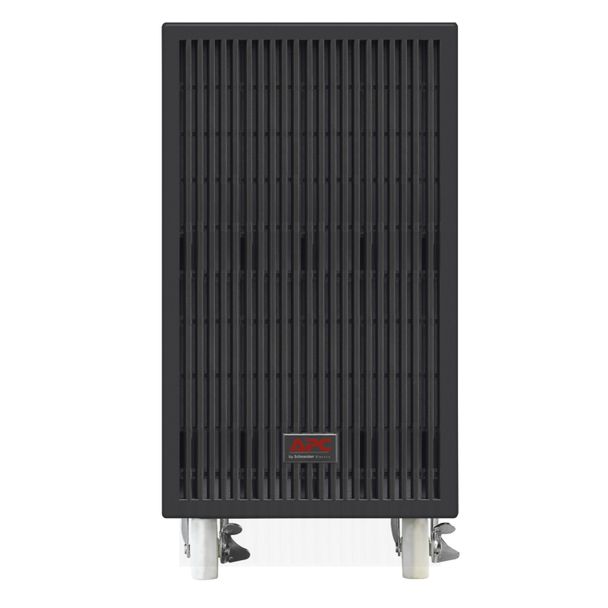

APC SRV10KIL Easy UPS SRV 10000VA 230V with External Battery Pack
Model
SRV10KIL
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$5,022.70
APC Easy UPS SRV 10000VA 230V with External Battery Pack
APC Easy UPS SRV 10000VA 230V with External Battery Pack
Specifications
| Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
|
|---|
| provided equipment |
Basic UPS signalling RS-232 cable
CD with software 1 x DC cable User manual USB cable |
|
|---|---|---|
| Number of tare power |
70 W
|
|
| Number of power module free slots |
0
|
|
| Number of power module filled slots |
0
|
|
| redundant |
No
|
|
| UPS size |
WS
|
| colour |
Black
|
|
|---|---|---|
| depth |
48.5 cm
|
|
| height |
36.8 cm
|
|
| net weight |
76.5 kg
|
|
| USB compatible |
Yes
|
|
| width |
38 cm
|
| network frequency |
40...70 Hz
|
|
|---|---|---|
| number of input connectors |
1 hard wire 3-wire (1P + N + E)
|
|
| input voltage limits |
110...300 V adjustable (half load)
176...300 V |
|
| inputvolt_other |
220 V
240 V |
|
| input voltage |
230 V
|
| rated power in W |
10000 W
|
|
|---|---|---|
| Maximum configurable power in W |
10000 W
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| outputvolt_other |
220 V
240 V |
|
| crest factor |
3 : 1
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| output connector type |
Hard wire 3-wire (H N + E) 1
|
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| curve equation |
Efficiency
|
|
| curve load maximum |
100 %
|
|
| curve X-axis maximum |
100 %
|
|
| curve X-axis minimum |
0 %
|
|
| curve X-axis title |
Load
|
|
| curve X-axis units |
Percentage
|
|
| curve Y-axis maximum |
100 %
|
|
| curve Y-axis minimum |
50 %
|
|
| curve Y-axis title |
Efficiency
|
|
| curve Y-axis units |
Percentage
|
|
| efficiency |
94 % (full load)
|
|
| graph display |
1
|
|
| half load runtime |
00:07:00 5000 W
|
|
| output voltage |
230 V
|
|
| Maximum configurable power in VA |
10000 VA
|
|
| rated power in VA |
10000 VA
|
| product certifications |
CE
EAC |
|
|---|---|---|
| standards |
IEC 62040-1-1
IEC 62040-1-2 |
| ambient air temperature for operation |
0…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 % non-condensing
|
|
| operating altitude |
0...3000 m
|
|
| ambient air temperature for storage |
-15…60 °C
|
|
| Storage Relative Humidity |
Non-condensing 0…95 %
|
|
| storage altitude |
0…15000 m
|
|
| acoustic level |
58 dB
|
|
| show note OP temperature |
No
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
3 h
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
|
| battery curve |
D
|
|
| Battery power in VAH |
1512 VAh runtime
|
|
| battery option |
SRV240BP-9A 1 3024 VAh
SRV240BP-9A 2 4536 VAh SRV240BP-9A 3 6048 VAh SRV240BP-9A 4 7560 VAh SRV240BP-9A |
| free slots |
1
|
|
|---|---|---|
| control panel |
Multifunction LCD status and control console
|
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
| Emergency power off |
Yes
|
| Surge energy rate |
600 J
|
|---|
| Package 1 Weight |
82.5 kg
|
|
|---|---|---|
| Package 1 Height |
46 cm
|
|
| Package 1 width |
58 cm
|
|
| Package 1 Length |
57 cm
|
| REACh Regulation |
REACh Declaration
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
| Warranty |
2 years repair or replace
|
|---|
| GTIN | 0731304337942 |
|---|
