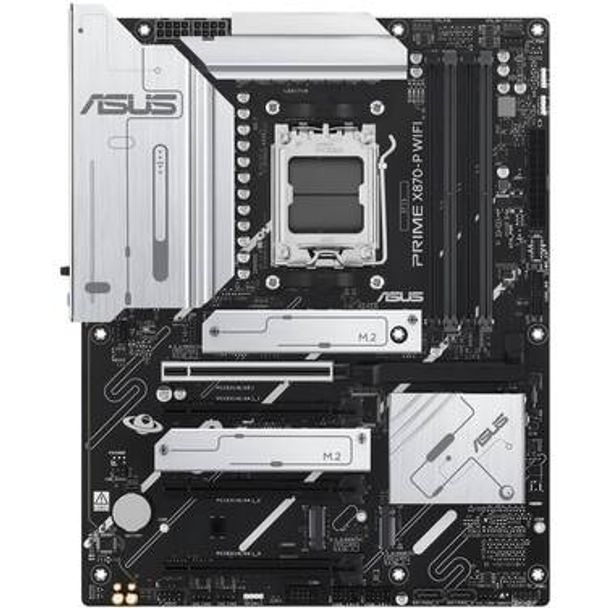

ASUS PRIME X870-P-WIFI-CSM PRIME X870-P WIFI CSM AM5 ATX Motherboard
Model
PRIME X870-P-WIFI-CSM
Location | Availability |
---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
$529.00
Model
|
PRIME X870-P WIFI-CSM
|
News & Updates
|
Please refer to the global product page at the following link for the latest news and specifications.
|
https://www.asus.com/motherboards-components/motherboards/csm/prime-x870-p-wifi-csm/techspec/ | |
CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
* Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
Chipset
|
AMD X870 Chipset
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5
|
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors | |
ECC and Non-ECC, Un-buffered DIMM* | |
Dual channel memory architecture | |
Supports AMD Extended Profiles for Overclocking (EXPO™) | |
ASUS Enhanced Memory Profile (AEMP) | |
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
Graphics
|
1 x HDMI™ port**
|
2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
** Supports 4K@60Hz as specified in HDMI 2.1. | |
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. | |
**** VGA resolution support depends on processors' or graphic cards' resolution. | |
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
|
1 x PCIe 5.0 x16 slot (supports x16 mode) | |
AMD Ryzen™ 8000 Series Desktop Processors | |
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
AMD X870 Chipset | |
3 x PCIe 4.0 x16 slots (support x1 mode)*** | |
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
** Specifications vary by CPU types. | |
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. | |
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. | |
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
Storage
|
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
AMD Ryzen™ 8000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
AMD X870 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** | |
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** | |
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** | |
2 x SATA 6Gb/s ports**** | |
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. | |
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. | |
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. | |
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. | |
Ethernet
|
1 x Realtek 2.5Gb Ethernet
|
ASUS LANGuard | |
Wireless & Bluetooth
|
Wi-Fi 7*
|
2x2 Wi-Fi 7 (802.11be) | |
Supports 2.4/5/6GHz frequency band** | |
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
Bluetooth® v5.4*** | |
*Wi-Fi features may vary depending on the operating system | |
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. | |
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
USB
|
Rear USB (Total 10 ports)
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®) | |
1 x USB 10Gbps port (1 x Type-A) | |
3 x USB 5Gbps ports (3 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
Front USB (Total 7 ports) | |
1 x USB 10Gbps connector (supports USB Type-C®) | |
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
* USB Type-C® power delivery output: max. 5V/3A | |
Audio
|
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- Supports up to 24-Bit/192 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
Back Panel I/O Ports
|
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
|
1 x USB 10Gbps port (1 x Type-A) | |
3 x USB 5Gbps ports (3 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
1 x HDMI™ port | |
1 x Wi-Fi module | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x BIOS FlashBack™ button | |
Internal I/O Connectors
|
Fan and Cooling Related
|
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
4 x 4-pin Chassis Fan headers | |
Power Related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V CPU Power connectors | |
Storage Related | |
4 x M.2 slots (Key M) | |
2 x SATA 6Gb/s ports | |
USB | |
1 x USB 10Gbps connector (supports USB Type-C®) | |
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (F_AUDIO) | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1 pin) | |
1 x 10-1 pin System Panel header | |
Special Features
|
ASUS 5X PROTECTION III
|
- DIGI+ VRM (- Digital power design with DrMOS) | |
- LANGuard | |
- Overvoltage protection | |
- SafeSlot | |
- Stainless-steel back I/O | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- PCIe Slot Q-Release | |
- Q-Antenna | |
- Q-Dashboard | |
- Q-DIMM | |
- Q-LED Core | |
- Q-Slot | |
ASUS Thermal Solution | |
- Flexible M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- BIOS FlashBack™ button | |
- BIOS FlashBack™ LED | |
- ProCool | |
- Pre-mounted I/O shield | |
- SafeSlot | |
Aura Sync | |
- Addressable Gen 2 headers | |
Software Features
|
ASUS Exclusive Software
|
Armoury Crate | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 4 (with AI Cooling II) | |
- Power Saving | |
ASUS DriverHub | |
ASUS GlideX | |
TurboV Core | |
ASUS CPU-Z | |
Norton 360 Deluxe (60 Days Free Trial) | |
WinRAR (40 Days Free Trial) | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
- ASUS MyHotkey | |
Remote Management Features
|
IT Management software supported
|
- ASUS Control Center Express(ACCE) | |
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Accessories
|
Cables
|
2 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x ASUS WiFi Q-Antenna | |
1 x M.2 rubber package | |
2 x Screw packages for M.2 SSD | |
Documentation | |
1 x ACC Express Activation Key Card | |
1 x Quick start guide | |
Operating System
|
Windows 11
|
Form Factor
|
ATX Form Factor
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
CPU Socket | AM5 |
---|---|
Form Factor | ATX |
