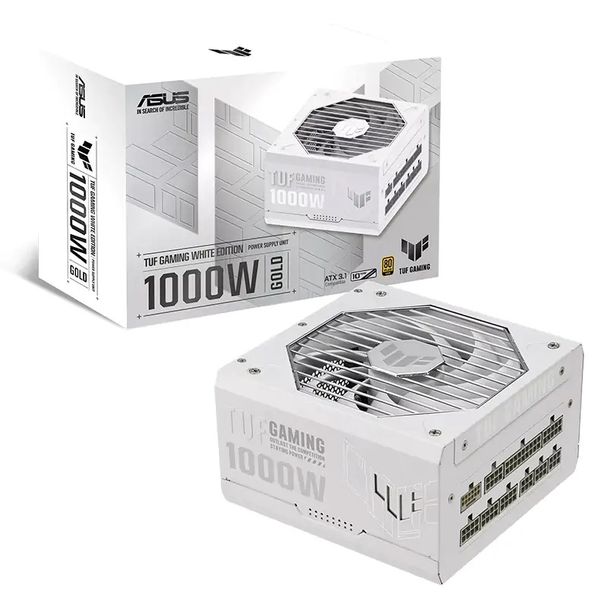

ASUS TUF-GAMING-1000G-WHITE 1000W 80+ Gold Fully Modular Power Supply White
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
SPECIFICATIONS
|
Intel Form Factor |
ATX12V |
|
PFC Type |
Active PFC |
|
ATX 3.0 |
Yes |
|
Dimensions |
150 x 150 x 86 mm |
|
Efficiency |
80Plus Gold |
|
Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
|
Hazardous Materials |
ROHS |
|
AC Input Range |
100-240Vac |
|
DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
|
Maximum Load |
25A25A83.3A 0.8A 3A |
|
Combined Load |
130W 130W 1000W 9.6W 15W |
|
Total Output |
1000W |
|
Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 |
|
Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
|
Weight |
2.48kg (single PSU) |
|
0dB Technology |
Supported. The fan shuts off entirely when the PSU is under certain load |
| GTIN | 4711387276129 |
|---|
