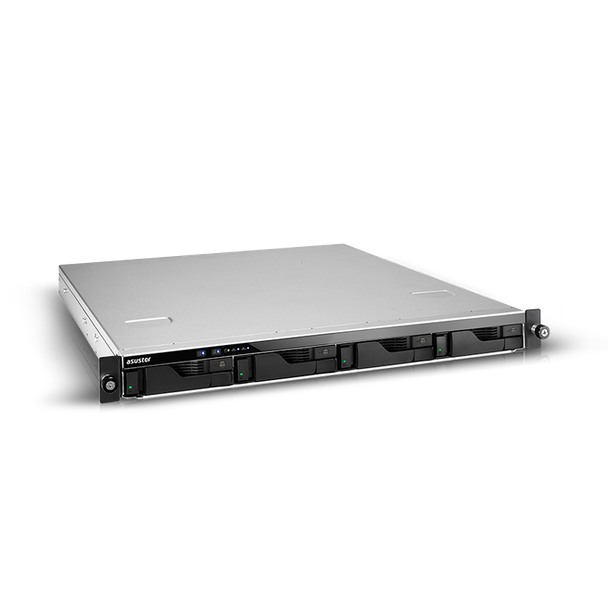

Asustor Lockerstor 4RS AS6504RS 4-Bay Diskles NAS with ATOM-C3538 8GB

CPU

CPU Model

Intel ATOM C3538

CPU Architecture

x64 64-bit

CPU Frequency

Quad-Core 2.1GHz

Memory

Memory

8GB SO-DIMM DDR4 Compatibility

Memory Module Pre-installed

8GB (1 x 8GB)

Total Memory Slots

4

Memory Expandable up to

128GB (4x 32GB) Installation Guide

Support mixed capacity

Flash Memory

8GB eMMC

Storage

Drive Bays

4

Compatible Drive Type Compatibility

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Maximum Drive Bays with Expansion Unit

20

External Ports

Expansion

USB 3.2 Gen 1 x 4

Network

Gigabit Ethernet (1G/100M) x 2; 2.5 Gigabit Ethernet (2.5G/1G/100M) x 2

PCIe Expansion Slots

PCIe 3.0 x8 slot (black, x4 link)

HDMI Output

N/A

Others

System Fan

40mm x 2

LCD Panel

Yes

Power Supply Unit / Adapter

AS6504RS x1 / AS6504RD x2

Input Power Voltage

100V to 240V AC

Redundant power supply

Yes

Service LED Indicator

Yes

Certification

FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS

Warranty

3 Years

Operation

Power Consumption

AS6504RS: 47.7W (Operation) 28.4W (Disk Hibernation);

Noise Level

-

Operation Temperature

0C~40C (32F~104F)

Humidity

5% to 95% RH

Size and Weight

Size

44(H) x 439(W) x 515(D) mm
