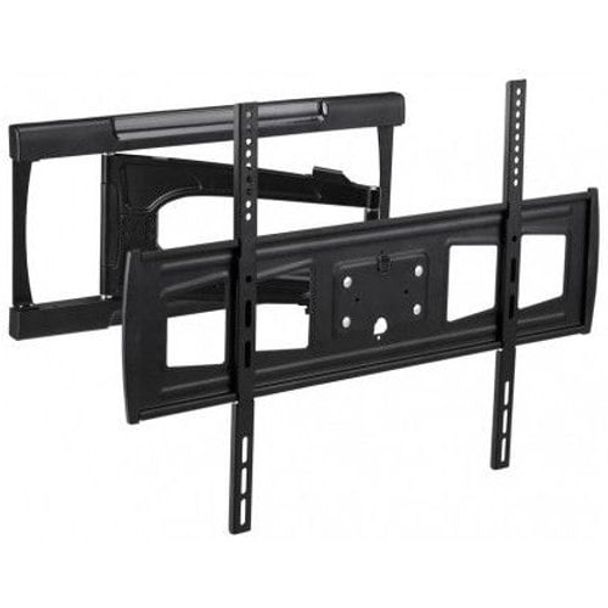

For flexible and sleek wall mounting of a medium to large screen TV, the TH-3060-UFL is the perfect solution. The ultra slim articulated arm has three pivot points for tilt, pan or horizontal adjustment to perfect your screen display to suit your environment. The arm comes pre-assembled for a quick and easy installation, and once fitted safely holds your screen less than 49mm from the wall (2") for a streamlined finish. Pre-assembled for quick and easy installation, the latched quick attachment system ensures safe installation with minimal time and effort. Integrated cable management professionally finishes your display.

• Ultra slim mount, display sits only 49mm (1.9") from wall
• Full range of motion via 3 pivot points
• Adjustable tilt and pan and horizontal fine tuning
• Integrated cable management
• Comes pre-assembled for quick and easy installation
• All mounting hardware included
• 10 year warranty

Product Details

Product code	TH-3060-UFL
Material	Steel and aluminium
Warranty	10 years

Compatibility

Minimum display weight, kg	0
Maximum display weight, kg	35
VESA mounting hole pattern, mm	200x100, 200x200, 200x300, 280x150, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400
Universal width (mm)	From 200 to 700
Universal height (mm)	From 100 to 500

Range of movement

Range of motion	Full motion
Spring assisted height adjustability	No
Tilt adjustment	20° downward tilt
Pan adjustment	90° left and 90° right
Horizontal levelling adjustment	5° left and 5° right
Height adjustable	No
Landscape to portrait screen rotation	No
Minimum distance from wall (mm)	49.5
Maximum distance from wall (mm)	625
