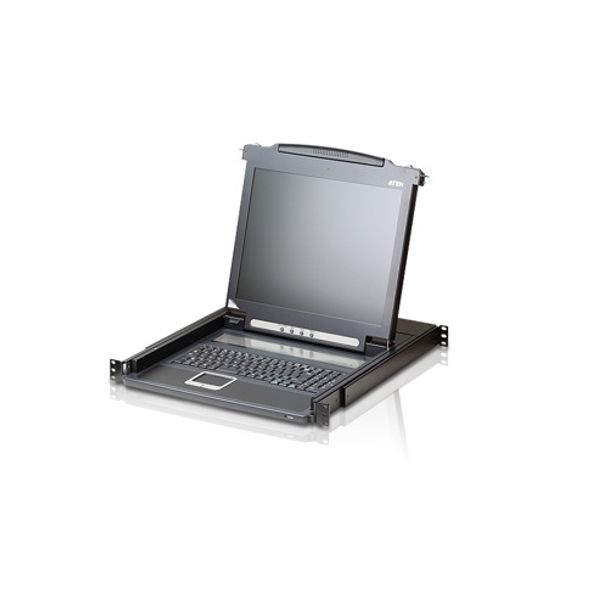

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Package Contents

• 1x CL1000M or CL1000N with Standard Rack Mount Kit
• 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
• 1x Power Cord
• 1x User Instructions

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
• Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
• Compatible with most PS/2 KVM Switches
• Internal power supply
• Adjustable depth to fit within a rack
• High video resolution:
  • Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
  • Supports DDC, DDC2, DDC2B
  • DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
• Improved design – optional single person installation kit
  Note: Custom KVM cables or converters are available for USB support
  * Compatible rack mounting kit:
  CL1000M: 2X-010G, 2X-011G, 2X-012G
  CL1000N: 2X-023G, 2X-024G, 2X-025G

PS/2 VGA LCD Console


CL1000





• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
• Supports input video resolutions up to 1920 x 1200@60 Hz
