Aten CL3100NX-ATA-AU 18.5" Short Depth VGA Single Rail LCD Console

Model
CL3100NX-ATA-AU
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$1,266.50
Aten 18.5" Short Depth VGA Single Rail LCD Console, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution

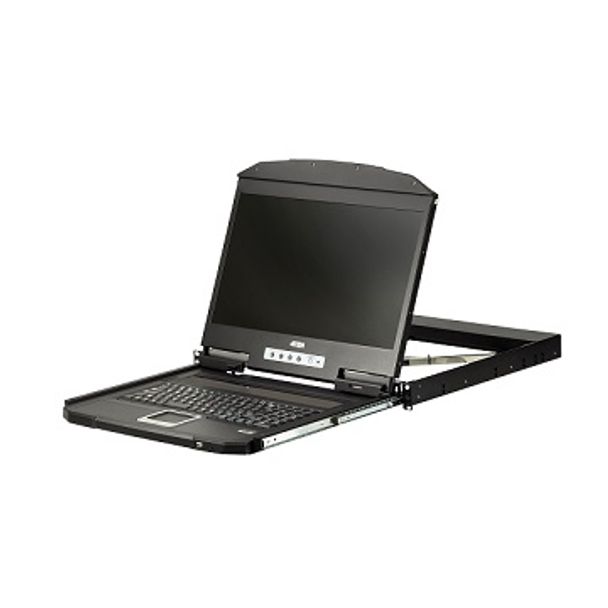

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.



Features

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use
    • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3100 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*
  • Reliability and Operational Versatility
    • Supports VGA video input; supports an external console with USB / VGA connectors
    • 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz
    • Audio support for connecting speakers
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard
    • Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
    • The design complies to the UL 60950-1 and CAN/CSA standards.
  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging



Package Contents

  • 1x CL3100 LCD KVM Console with Standard Rack Mount Kit
  • 1x USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x User Instructions



Specifications

Function CL3100NX
Computer Connections
Direct 1
Console Selection Hotkey
Connectors
KVM Ports 1 x SPHD Female (Yellow)
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral 1 x USB Type A Female (Front)
Switches
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1366 x 768 @ 60Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3 mm x 0.3 mm
Support Color 16.7M colors
Contrast Ratio 1000:01:00
Luminance 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / Mouse USB
Maximum Input Power Rating 100–240 V AC, 50/60 Hz, 1 A
Power Consumption AC110:13.8W:80BTU
AC220:14.1W:81BTU
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 9.07 kg ( 19.98 lb )
Dimensions (L x W x H) 48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 43.00 x 4.28 cm
