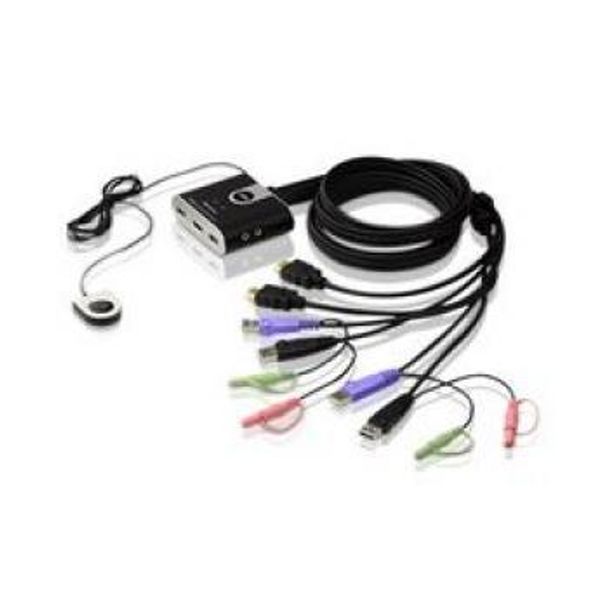

Aten CS692-AT 2-Port USB HD Audio/Video KVM Switch

SKU
KVM-ATE-CS692
Model
CS692-AT
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$89.00
Aten CS692-AT 2-Port USB HD Audio/Video KVM Switch
Aten
672792002182
Add to Wish List
  • Superior video quality - up to 1920 x 1200 and 1080p
  • Computer selection via a remote port selector, hotkeys, and USB mouse
  • Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
  • Built-in all-in-one cables (2 x 1.2 m) and bus-powered design

The CS692 HD USB KVM Switch links two HD-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.



Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.

Package Contents

  • 1x CS692 2-Port USB HD Audio/Video KVM Switch with Remote Port Selector
  • 1x User Instructions
  • 2x Hotkey Stickers



2-Port USB HD Audio/Video KVM Switch



Computer Connections 2
Port Selection Hotkey, Remote Port Selector, Mouse
Connectors
Console Ports 1 x HDMI Female (Black)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x HDMI Male (Black)
2 x USB Type A Male (Purple)
2 x USB Type A Male (Black)
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
LEDs
KVM 2 (Green)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60 Hz;
1920 x 1200 @ 60Hz
Scan Interval 3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption DC5V:1.76W:21BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 8.24 x 6.65 x 2.52 cm
(3.24 x 2.62 x 0.99 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
