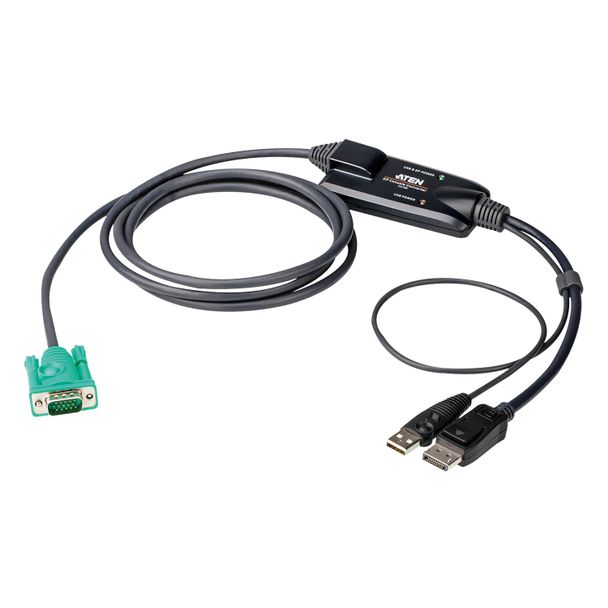

Aten CV190-AT DisplayPort Console Converter
Model
CV190-AT
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$79.00
Aten CV190-AT DisplayPort Console Converter
Aten CV190-AT DisplayPort Console Converter
The CV190 is a DisplayPort console converter. It fully supports ATEN KVM switches, which use specially designed 15 pin Special High Density connectors (SPHD-15) to transmit the KVM data between the switch and the computer.
By connecting to SPHD-15 switches, the CV190 takes advantage of DisplayPort and USB bus to transfer video and keyboard/mouse input to the computer quickly and reliably while providing a neat and tidy installation.
Features
- Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
- Supports high video resolution – up to 1920 x 1080 @ 60Hz
- DisplayPort 1.1 compliant
- Supports USB keyboard and mouse
- Bus-powered – no external power adapter required
- Easy installation – no software required
Specifications
| Console Connections | 1 |
| Connectors | |
| To Computer | 1 x USB Type A Male 1 x DisplayPort Male |
| To Switch | 1 x SPHD-15 Male |
| Switches | |
| Power Selected | 1 x Slide Switch |
| LEDs | |
| Status | 1 (Green; USB & DP Power) 1 (Orange; USB Power) |
| Video | 1920 x 1080 @ 60 Hz |
| Power Consumption | DC5V:1.01W:5BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.21 kg ( 0.46 lb ) |
| Cable Length | 1.8 m |
| Dimensions (L x W x H) | 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| GTIN | 672792011276 |
|---|
