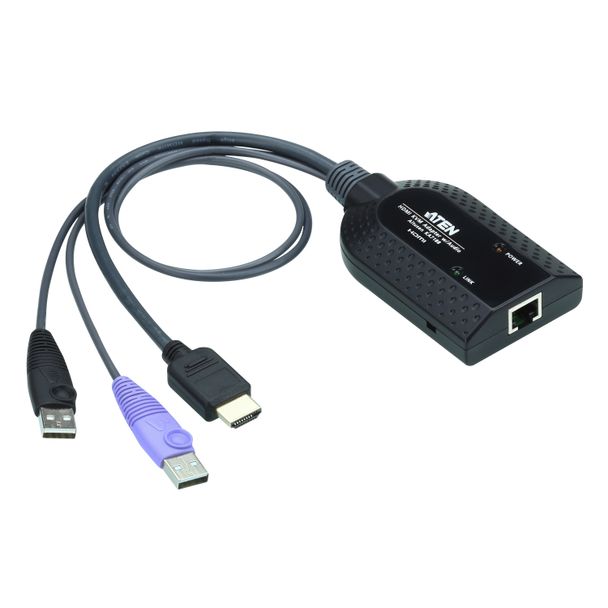

ATEN KA7188-AX KA7188 USB HDMI Virtual Media KVM Adapter Cable
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
The KA7188 KVM Adapter Cable connects a KVM switch to the HDMI video and USB ports of a target computer.* The KA7188 supports HDMI output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.**
The KA7188 supports Audio De-Embedder, which extracts the audio from an HDMI signal. More advanced features of KA7188 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
Note:
*Both USB connectors must be plugged into USB ports on the target computer for the KA7188 to receive sufficient power.
Specifications
| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer | 2 x USB Type A Male 1 x HDMI Male |
| LEDs | |
| Link | 1 (Green) |
| Power | 1 (Orange) |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20–60°C |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.11 kg ( 0.24 lb ) |
| Dimensions (L x W x H) | 9.10 x 5.60 x 2.14 cm (3.58 x 2.2 x 0.84 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Compatible Devices
KVM over IP Switches: KN4024VB, KN2116VB, KN4016VB, KN1132VB, KN8032VB, KN8064VB, KN1108VA, KN1116VA, KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN4116VA, KN4124VA, KN4132VA, KN4140VA, KN4164V, KN4032VB, KN1132V
LCD KVM Switches / Consoles: KL1108V, KL1116V
Remote Control & Monitoring Solutions: RCM416A, RCM416VA, RCM432VA, RCM464VA, RCM816A, RCM816
| GTIN | 672792009228 |
|---|
