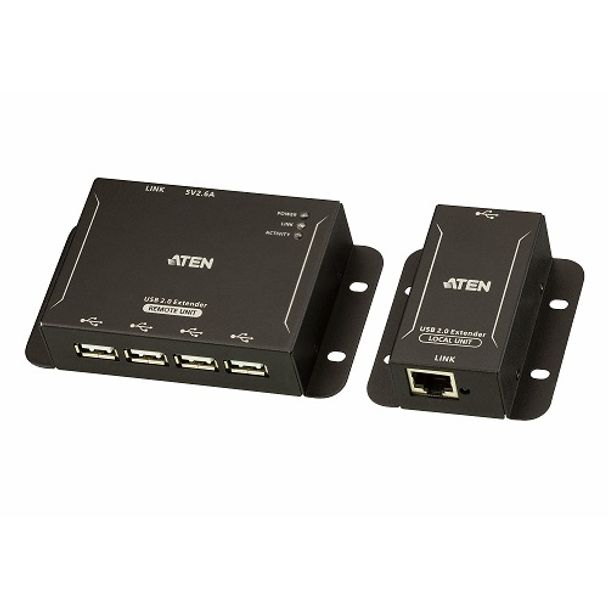

Aten UCE3250-AT-U 4-Port USB 2.0 Cat 5 Extender, extends 4 USB devices up to 50m

Model
UCE3250-AT-U
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$209.00
Aten 4-Port USB 2.0 Cat 5 Extender, extends 4 USB devices up to 50m, includes power adapter to power the remote unit, with local unit powered via USB

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.

The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mice, webcams, scanners, or printers, etc.

With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.



Features

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over a Cat 5/5e/6 cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play



Package Contents

  • 1x UCE3250L 4-port USB 2.0 CAT 5 Extender (Local unit)
  • 1x UCE3250R 4-port USB 2.0 CAT 5 Extender (Remote unit)
  • 1x USB Type-A Male to Type-B Male Cable
  • 1x Power Adapter
  • 1x User lnstructions



Specifications

Function UCE3250L UCE3250R
Connectors
USB Port 1 x USB Type B Female 4 x USB Type A Female
Link 1 x RJ45 Female 1 x RJ45 Female
Power N/A 1 x DC Jack
USB Specification 2.0 / 1.1 High / Full / Low Speed 2.0 / 1.1 High / Full / Low Speed
USB Devices Supported N/A 4 Devices
Power Consumption Bus-Powered Self-Powered, 5V, 13W
Environmental
Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–70°C -20–70°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Weight 0.09 kg ( 0.2 lb ) 0.16 kg ( 0.35 lb )
Housing Metal Metal
Dimensions (L x W x H) 6.70 x 6.02 x 2.37 cm 6.33 x 11.04 x 2.41 cm
(2.64 x 2.37 x 0.93 in.) (2.49 x 4.35 x 0.95 in.)
More Information
GTIN4719264647154
