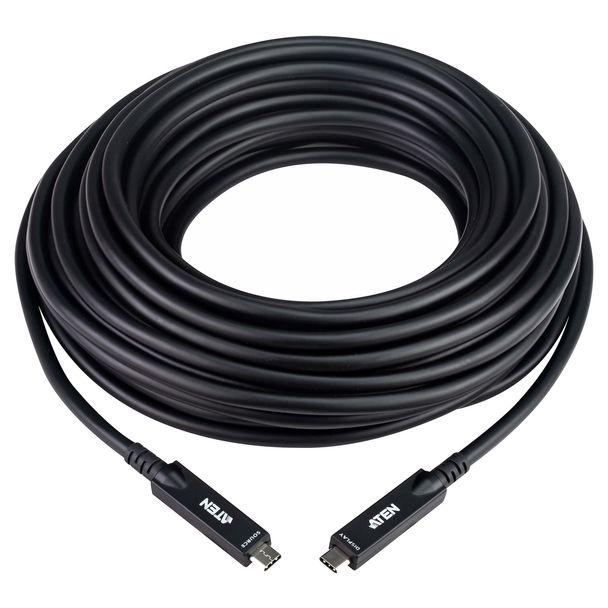

Aten UE3415F-AT 15m Ultra HD USB-C Active Optical Cable
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
The UE3415F is a USB-C full-featured active optical cable that handles high-speed data and video transmission and up to 60W power delivery for a distance of up 15 m simultaneously. It supports two operating modes – either 2-lane (DP 1.4 + USB 3.2 Gen 2 at 10 Gbps) or 4-lane (DP 2.1 UHBR10 + USB 2.0 at 480 Mbps) up to 4K @ 60 Hz. Cable construction using premium materials brings high resistance to EMI / RFI, making it suitable not just for educational and conference scenarios, but also sensitive applications in medical industry.
- Extends distance between PCs and USB-C peripherals up to 15 m
- Supports 60W Power Delivery
- Supports either 4-lane DP2.1 UHBR10 + USB 2.0 (480 Mbps) or 2-lane DP 1.4 + USB 3.2 Gen 2 (10 Gbps) depending on the requirements of the connected device
- Supports resolutions up to 4K@60Hz (without HDR or DSC)
- Backward compatible with USB 2.0 / 1.1
- Highly resistant to EMI and RFI due to high quality material construction
- Plug-and-play
|
GENERAL |
|
|
Connectors |
USB Port: 1 x USB-C Male Downstream: 1 x USB-C Male |
|
Cable Type |
Hybrid type with optical fiber and copper wire |
|
Cable Length |
15 m |
|
Data Rate |
Up to 10 Gbps |
|
Power Consumption |
DC5V:1.2WBTU/h |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
0–40°C |
|
Storage Temperature |
-20–60°C |
|
Humidity |
10-80% RH |
|
JACKETED |
|
|
Material |
PVC |
|
Color |
Black |
|
PHYSICAL PROPERTIES |
|
|
Housing |
Connector Case: Zinc-Alloy |
|
Weight |
1.10 kg ( 2.42 lb ) |
|
OTHERS |
|
|
Package Contents |
1x UE3415F 15 m Ultra HD USB-C Active Optical Cable 1x user instructions |
|
Notes |
1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device. 2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed. 3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care. 4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop. 5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute. |
