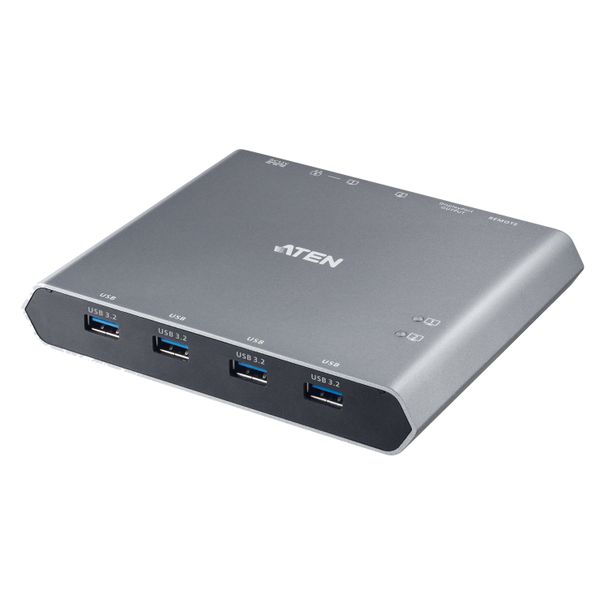

Aten US3311-AT-U US3311 2-Port DisplayPort USB-C KVM Dock Switch
Model
US3311-AT-U
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$239.00
Aten US3311-AT-U US3311 2-Port DisplayPort USB-C KVM Dock Switch
Specifications
| Computer Connections | 2 |
| Connectors | |
| Computer | CPU1: 1 x USB Type C Female CPU2: 1 x USB Type C Female |
| Device | 4 x USB 3.2 Gen 1 Type-A Female |
| Video Output | 1 x DisplayPort Female |
| Power | 1 x DC jack for 12V 3.3A 1 x USB-C Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output* Port 2 : Supports max. 5V, 3A output *Supports maximum 100W USB-C PD power adapter input. *For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A. |
| Port Selection | |
| Input | Port Switch Button |
| Video Resolution | Up to 3840 x 2160@60hz |
| System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311's user manual. iPadOS 13.1 and above, iPad Pro (USB-C)* *Support video output in mirror mode |
| Power | |
| Maximum Input Power Rating | DC12V, 3.3A |
| Power Consumption | DC12V:1.68W:117BTU |
| LEDs | |
| Selected | 2 (White) |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.35 kg ( 0.77 lb ) |
| Dimensions (L x W x H) | 14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| GTIN | 4710469342806 |
|---|
