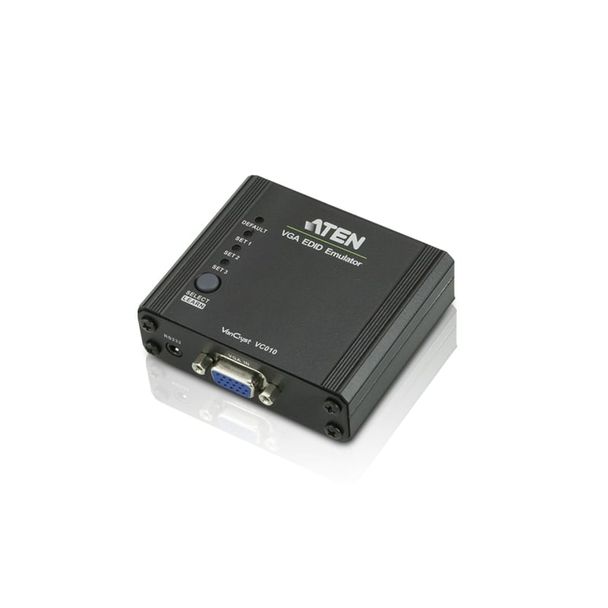

Aten VC010-AT Professional VGA EDID Emulator with Programmer
Model
VC010-AT
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$117.20
Aten VC010-AT Professional VGA EDID Emulator with Programmer
The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Package Contents
- 1x VC010 VGA EDID Emulator with Programmer
- 1x RS-232 Configuration Cable
- 1x USB to DC Power Cord
- 1x User Instructions
| Data Rate | 2.25 Gbits |
| Max. Video Resolution | WUXGA (1920 x 1200) |
| Video Input | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| EDID Settings | EDID Mode: Default / Learn / Customized (EDID Wizard support) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.11W:1BTU |
| Environmental | |
| Operating Temperature | 0 - 50 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 7.90 x 7.76 x 2.45 cm (3.11 x 3.06 x 0.96 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| GTIN | 4710423779235 |
|---|
