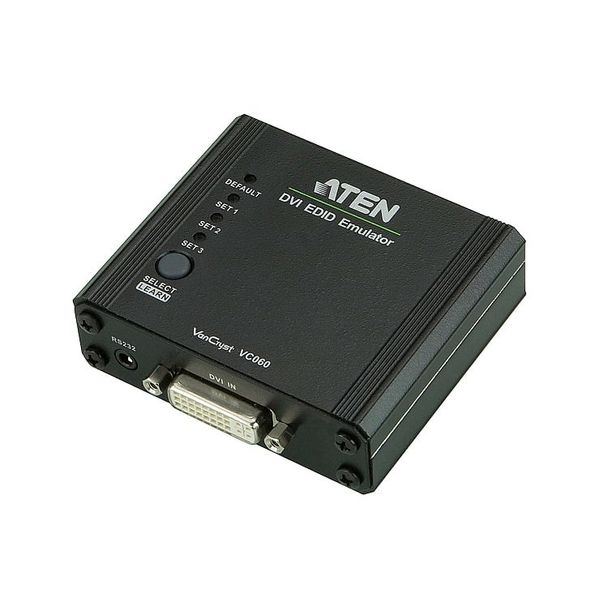

ATEN VC060-AT DVI EDID Emulator with Programmer
Model
VC060-AT
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$97.70
The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.
The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Package Contents
- 1x VC060 DVI EDID Emulator with Programmer
- 1x RS-232 Configuration Cable
- 1x USB to DC Power Cord
- 1x User Instructions
Compatible Products:
KVM Extenders: CE611, CE820L, CE820R, CE820, CE620
| Max. Video Resolution | WUXGA (1920 x 1200) |
| Data Rate | 2.25 Gbits |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.13W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 50 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 7.90 x 7.86 x 2.45 cm (3.11 x 3.09 x 0.96 in.) |
| Carton Lot | 5 pcs |
| Video Input | |
| Interfaces | 1 x DVI-I Female (White) |
| Impedance | 100 Ω |
| Video Output | |
| Interfaces | 1 x DVI-I Female (White) |
| Impedance | 100 Ω |
| EDID Settings | EDID Mode: Default / Learn / Customized (EDID Wizard support) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
- Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard – allows a user an easy way to manage EDID settings
- EDID mode selection – Default, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.
| GTIN | 4710423777606 |
|---|
