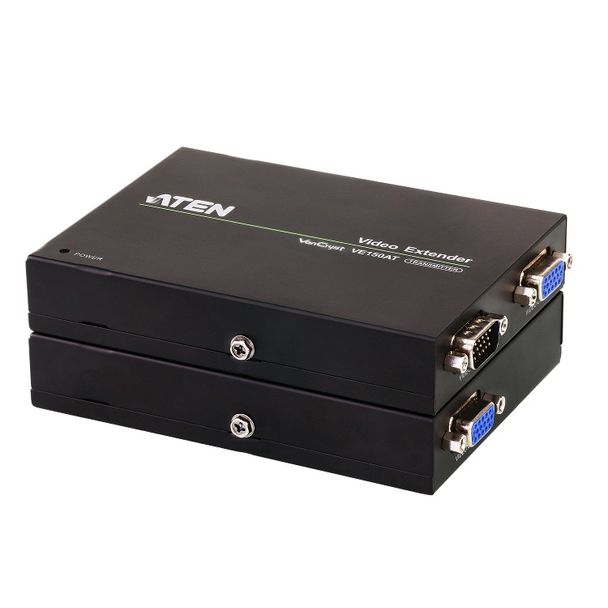

ATEN VE150A-AT-U Professional Video Extender VGA Via CAT5
Model
VE150A-AT-U
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$170.30
VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
Package Contents
- 1x VE150AT Video Extender (Local unit)
- 1x VE150AR Video Extender (Remote unit)
- 2x Power Adapters
- 1x VGA Cable (1.8m/6ft)
- 1x Mounting Kit
- 1x User Instructions
- Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission – up to 150 m
- Adjustable gain control – manually adjust signal strength to compensate for distance
- Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Supports wide screen formats
- Supports hot-plugging
- Built-in 8KV/15KV ESD protection
- Supports DDC for the local monitor
- Easy installation
- Rack Mountable
- Plug-and-play – no software installation required
| Function | VE150AR | VE150AT |
| Video Input | ||
| Interfaces | N/A | 1 x HDB-15 Male (Blue) |
| Impedance | N/A | 75 Ω |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDB-15 Female (Blue) | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ω | 75 Ω |
| Video | ||
| Max. Bandwidth | 300 MHz | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@30m; 1280 x 1024@150m | Up to 1920 x 1200@30m; 1280 x 1024@150m |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Power Consumption | DC5.3V:0.87W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC5.3V:1.35W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0 - 50°C | 0 - 50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Housing | Metal | Metal |
| Weight | 0.24 kg ( 0.53 lb ) | 0.24 kg ( 0.53 lb ) |
| Carton Lot | 5 pcs | 5 pcs |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
Compatible Products
Video Converters: 2A-130G
Cat 5 / 6 / 6A Cables: 2L-2801
Accessories: VE-RMK1U Video Extenders: VE170Q, VE170
| GTIN | 4719264640568 |
|---|
