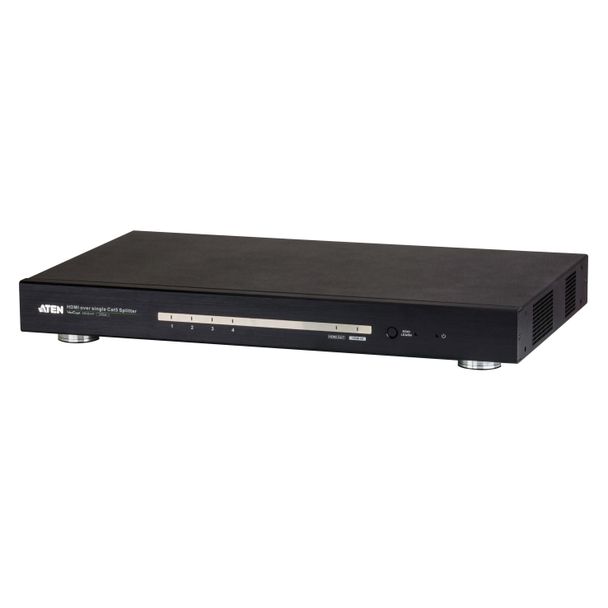

ATEN VS1814T-AT-U VS1814T 4 Port HDMI Over Single Cat 5 Splitter
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers*, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver
The solution implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat 6/6a cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) - Local Output 4 x RJ-45 Female |
| Impedance | 100 Ω |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) HDBaseT Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) (Depends on connected receiver) |
| Max. Distance | Up to 100 m (Depends on connected receiver) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Auto / Learn |
| Connectors | |
| Power | 1 x 3-Prong AC Socket (Black) |
| Power Consumption | AC110V:18.2W:85BTU/h AC220V:18.2W:85BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.47 kg ( 7.64 lb ) |
| Dimensions (L x W x H) | 43.24 x 26.11 x 4.40 cm (17.02 x 10.28 x 1.73 in.) |
| Carton Lot | 1 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Features
- One HDMI input to 4 HDMI outputs via a Cat 6/6a cable
- Offers local HDMI output
- Extends displays up to 100 m
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- HDMI (3D, Deep color, 4kx2k); HDCP 1.4 Compatible
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- EDID mode selection
- Rack-mountable
Package Contents
- 1x VS1814T 4-Port HDMI HDBaseT Splitter
- 1x Power Cord
- 1x Mounting Kit
- 1x User Instructions
Compatibilities
Cable KVM Switches: CS22H
Desktop KVM Switches: CS1822, CS1824
KVM Extenders: CE920, CE820
Video Extenders: VE2812PR, VE44PB, VE781010, VE781020, VE781030, VE2812R, VE7832, VE7833, VE7834, VE7835, VE814A, VE814AR, VE814AT, VE811R, VE811, VE1812R, VE1812, VE901, VE901R, VE601R, VE801R, VE812R
HDMI Cables: 2L-7D01H, 2L-7D02H-1, 2L-7D03H, 2L-7D05H-1, 2L-7D05H, 2L-7D10H, 2L-7D15H, 2L-7D20H, 2L-7DA3H, 2L-7DA6H
Accessories: 2X-EA12
| GTIN | 4719264641343 |
|---|
