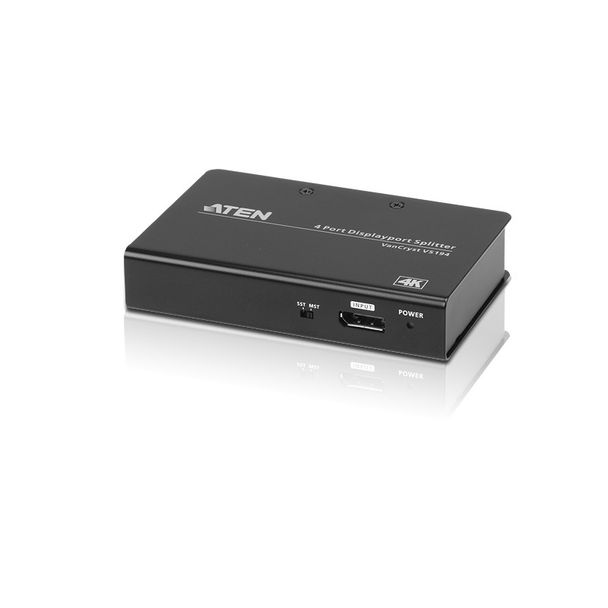

Aten VS194-AT-U Video Splitter 4 Port DisplayPort 4K Splitter
Model
VS194-AT-U
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$464.30
Aten Video Splitter 4 Port DisplayPort 4K Splitter, 4096x2160 / 3840x2160@60Hz, Supports Extend Mode & Split Mode
The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS194 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
The VS194 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater applications, as well as in corporate, educational and commercial settings.
Package Contents
- 1x VS194 4-port True 4K DisplayPort Splitter
- 1x Power Adapter
- 1x User Instructions
| Video Output | |
| Interfaces | 4 x DisplayPort Female (Black) |
| Video Input | |
| Interfaces | 1 x DisplayPort Female (Black) |
| Video | |
| Compliance | DP 1.2a; HDCP 1.3 |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz |
| Max. Data Rate | 21.6 Gbps (5.4 Gbps per lane) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:3.36W:44BTU |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.33 kg ( 0.73 lb ) |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| GTIN | 4719264645259 |
|---|
