Cambium N000082L164A PTP 820C INDOOR AC POE INJECTOR, 90W

PoE Injector Mechanical Specifications

• Dimensions – 134mm(H), 190mm(W),62mm(D), 1 kg

PoE Injector Environmental Specifications

• 33°C to +55°C (-45°C to +60°C extended)

PoE Injector Power Input Specifications

• Standard Input: -48 or +24 VDC • DC Input range: ±(18/40.5 to 60) VDC

(+18VDC extended range is supported as part of the nominal +24VDC support)

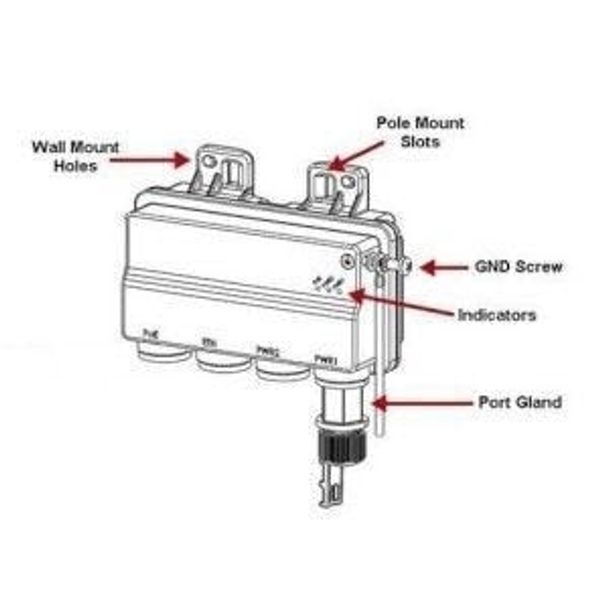

PoE Injector Interfaces

DC Power Port 1 ±(18-60)V or ±(40-60)V DC Power Port 2 ±(18-60)V (Optional) GbE Data Port supporting 10/100/1000Base-T Power-Over-Ethernet (PoE) Port Grounding screw
