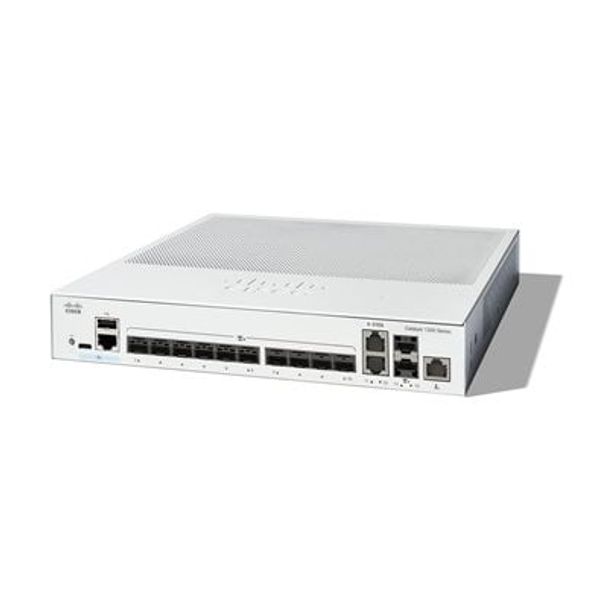

Cisco C1300-12XS Catalyst C1300 Managed 12 Port 10Gbe Switch
Model
C1300-12XS
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$2,869.20
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 12 ports - L3 - smart |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10GBase-X + 2 x combo 10 Gigabit SFP+/RJ-45 |
| Performance | Forwarding rate (64‑byte packets): 178.57 Mpps | Switching capacity: 240 Gbps |
| Capacity | MSTP instances: 8 | RPVST+ instances: 126 | Link aggregation groups: 8 | Link aggregation ports: 8 | VLAN IDs: 4093 | IGMP multicast groups: 2000 | IPv4 routes (static): up to 990 | IPv4 interfaces: 128 | ACL rules: 1024 | Priority queues: 8 | Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, fanless, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | System, PoE, link/activity/speed |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 12 x 10GBase-X SFP+ | 2 x 10GBase-T/10GBase-X RJ-45/SFP+ | 1 x console RJ-45 | 1 x USB-C console | 1 x USB | 1 x RJ-45 |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
|---|---|
| Included Accessories | Pointer card |
| MTBF | 2,165,105 hours |
| Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
| Dimensions & Weight | |
|---|---|
| Width | 26.8 cm |
| Depth | 27.2 cm |
| Height | 4.4 cm |
| Weight | 2.49 kg |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - return to factory - lifetime | Technical support - 1 year |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% RH (non-condensing) |
| GTIN | 889728521598 |
|---|
