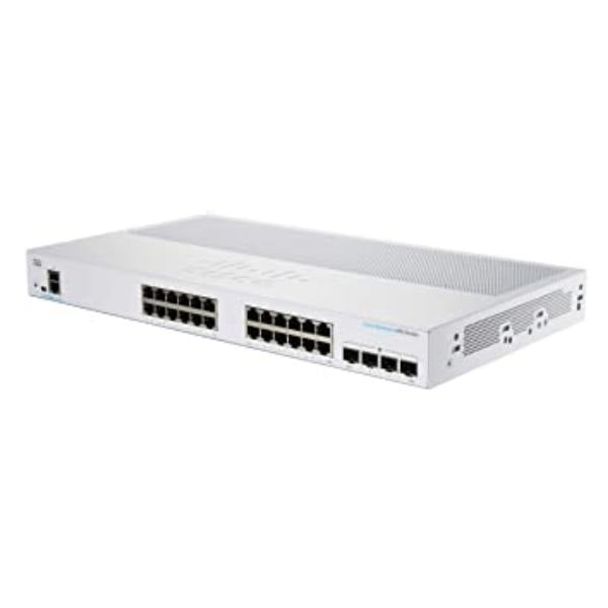

Cisco CBS220-24P-4G-AU 24 x 10/100/1000 ports with 195W power budget

Cisco CBS220-24P-4G-AU 24 x 10/100/1000 ports with 195W power budget

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.

• Capacity in millions of packets per second (mpps) (64-byte packets): 41.66
• Switching capacity in gigabits per second (Gbps): 56
• Power dedicated to PoE: 195W
• Number of ports that support PoE: 24
• System power consumption: 220V = 30.4W
• Power consumption (with PoE): 220V = 240.3W
• Heat dissipation (BTU/hr): 833.59
• Total system ports: 28 Gigabit Ethernet
• RJ-45 ports: 24 Gigabit Ethernet
• Combo ports (RJ-45 + SFP): 4 Gigabit Ethernet SFP
• Packet buffer: 4.1M Mb
• Unit dimensions: 440 x 257 x 44 mm
• Unit weight: 4.07 kg
• Fans: 2
• Acoustic noise: 25°C 42.7 dB
• MTBF at 25°C (hours): 587,473
