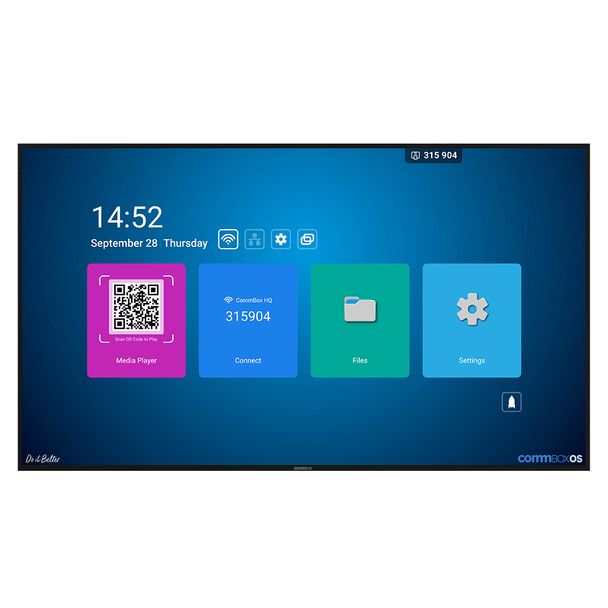

CommBox CBDI0143 43" UHD 24/7 Intelligent Commercial Display
Model
CBDI0143
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$1,126.00
| Display | |
| LCD Size | 43" |
| Screen Type | LCD |
| Glass Protection | Anti-glare 28% |
| Backlight Type | D-LED |
| Orientation | Portrait, Landscape |
| Aspect Ratio | 16:9 | 9:16 |
| Resolution | 3840 x 2160 |
| View Area | 941.184 x 529.416 |
| Brightness | 450 |
| Contrast Ratio | 5000:1 |
| LCD Refresh Rate | 60 Hz |
| Viewing Angle(°) | 178 |
| Life of Screen | 50,000hrs |
| Response Time | 6.5ms |
| Display Colours (10bit) | 1.07 |
| Colour Gamat | 72% |
| Bezel Colour | Black |
| Structure | |
| Housing | Aluminium |
| Product Size (mm) | 964.6 x 552.5 x 71.4 |
| Package Size (mm) | 1056 x 156 x 672 |
| Net Weight | 9.90kg |
| Gross Weight | 13.85 kg |
| VESA Mounting | 200 x 200 mm |
| Wall-Hanging Screw Spec | 12mm M6 |
| Environmental Conditions | |
| Operating Temperature (°C) | 0-40 |
| Operating Humidity (RH) | 10% – 90% |
| Storage Temperature (°C) | -20 – 60 |
| Storage Humidity (RH) | 10% – 90% |
| Max Operating Altitude | Below 5000 m |
| Audio | |
| Speaker Type | Downward Facing |
| Sound Channel | 2 |
| Speaker Output | 2 x 10w |
| Compute | |
| Operating System | Android 11 |
| System Version | CommBox OS |
| RAM | 4G |
| ROM | 32G |
| Architecture | Quad Core |
| RS232 Control | Yes - Baud rate 9200 |
| IP Control | Yes |
| Wake on Lan | Yes |
| Remote MGT | Yes-optional |
| Power | |
| Power Requirement | 240V |
| Power Consumption | 110W |
| Standby Power | < 0.5W |
| Connectivity | |
| WIFI Chipset | Removable WIFI 6 Module |
| WIFI Operating Frequency | 2.4GHz/5GHz |
| WIFI Standard | 802.11ac/b/g/n/ax |
| Bluetooth Version | 5 |
| Bluetooth Frequency | 2.4GHz |
| Operating Distance | 0.10m |
| Inputs & Outputs | |
| HDMI IN | 2 |
| USB-A 2.0 | 1 |
| USB-A 3.0 | 1 |
| USB-C | 1 - PD 65W |
| LAN-RJ45 | 1 |
| Audio Out | 1 x 3.5mm |
| S/PDIF Out | 1 |
| RS-232 | 1 |
| HDMI Out | 1 |
