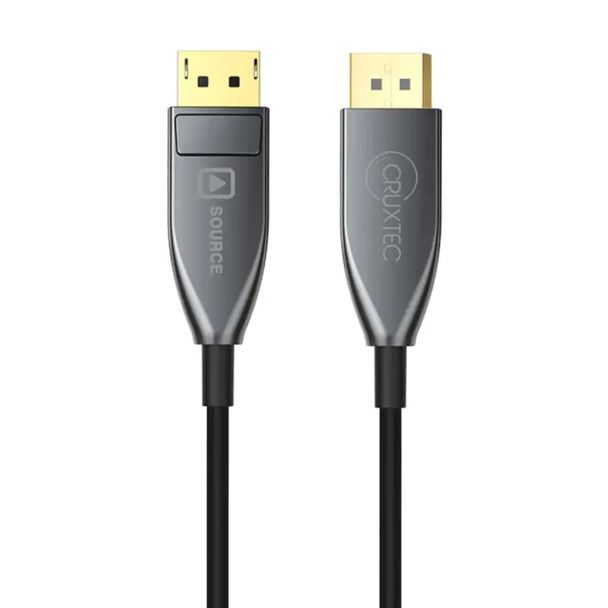

Cruxtec DS8K-10-BK DisplayPort 1.4 8K Active Optical fiber Male to Male Cable 10m 32.4Gbps Black
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
1) Zinc alloy housing
2) Gold plated connectors
3) DP 1.4 32.4Gbps, Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz
4) Optical Fiber Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmission
5) Breakthrough the length limit, non-destructive transmission without interference
6) Supports HDR, 3D, DSC, VRR
7) Kevlar is used as the central strength member on fiber optic cables, it provides additional protection for the fibers from the environment
8) German Silicom line Chipsets and American VCSEL II VI
Specifications
1) Pin plating: Gold
2) Bandwidth: DisplayPort 1.4 32.4Gbps AOC
3) Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz
4) Connectors: DisplayPort Male to Male ( Modular copper bush reinforced )
5) Cable length: 10m
6) Colour: Black
7) Chipsets: Silicom line (Germany)
8) VCSEL: II VI (America)
9) Cable Diameter (OD): 4.8mm
10) Power Consumption: Source (85mW@3.3V), Display (290mW@3.3V)
11) Shield Type: Aluminium foil shielding
12) Conductor Type: OM3 multimode 4-core optical fiber
13) Supports HDR, 3D, DSC, VRR
