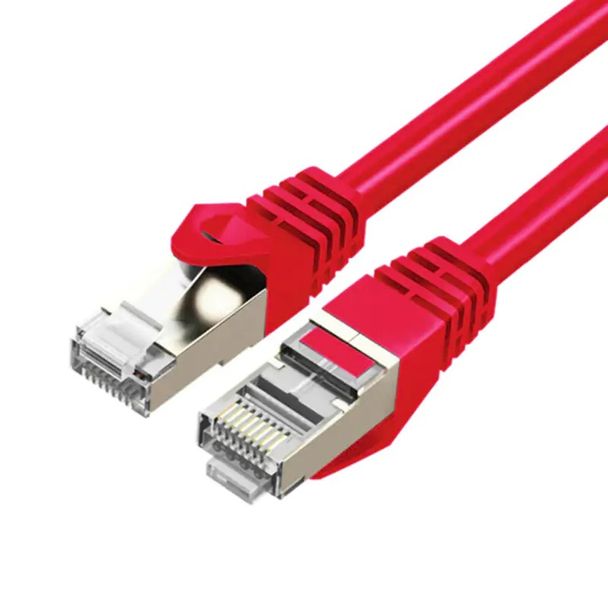

Cruxtec RS7-300-RD CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable Red 30m
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | End of Life |
West Melbourne (Pickup) | End of Life |
1) Gold-plated RJ45 connectors protect the cable from external Electro-Magnetic Interference (EMI)
2) 99.99% Oxygen Free Copper provides steady transmission
3) Supports up to 10Gbps transmission speed, 10x compared to Cat6
4) SF/FTP (SSTP) Triple shielding provides the maximum protection from RFI/EMI
5) Fluke Test Passed
SPECIFICATIONS
|
Compliant Standard |
TIA-568-C.2-2009, ISO/IEC 11801(Ed. 2.2) |
|
Suitable for |
10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+ |
|
Conductor Type |
BC 4*2*28AWG (7*0.12mm) OFC(Oxygen Free Copper) |
|
Shielding Types |
SF/FTP Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding) |
|
Connector |
Gold-plated RJ45, nickel-plated copper shell |
|
Wiring Scheme |
T568B |
|
Transfer Rate |
Up to 10Gbps |
|
Bandwidth |
Up to 600MHz |
|
Sheath |
PVC |
|
Insulation |
HDPE |
|
Outside Diameter |
6.2±0.3mm |
|
Minimum Bend Radius |
45.5mm |
|
Colour |
Red |
|
Cable Length |
30m |
| GTIN | 0712179497030 |
|---|
