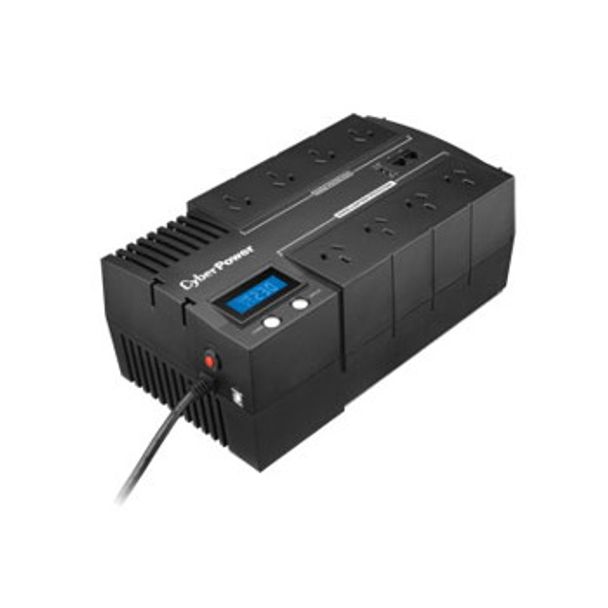

CyberPower BR1200ELCD BRIC-LCD 1200VA/720W (10A) Line Interactive UPS

SKU
UPS-CP-BR1200L
Model
BR1200ELCD
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
In Stock
$279.00
CyberPower BRIC-LCD 1200VA/720W (10A) Line Interactive UPS - (BR1200ELCD)-2 Yrs Adv. Replacement incl.Int. Batteries
CyberPower
4712856270921
Add to Wish List

The BRICs LCD BR1200ELCD UPS for home and small office computer systems and electronic devices features line conditioning and protection against surges/spikes, provides reliable battery backup and clean power supplies during brownouts or power failures. This UPS system is designed with patented GreenPower UPS™ bypass circuitry that improves the operating efficiency so that users can enjoy significant cost savings by reducing energy consumption and waste heat generated.

The multifunction LCD readout showcases real-time power/battery status at a single push-of-a-button. RJ11/RJ45 (One-in/One-out) port is included for the protection of phone and network line. The EMI/RFI filters increase the tolerance of noises and load interferences so that improve the picture and sound quality in audio/video systems. Featuring Automatic Voltage Regulation (AVR) technology that helps to stabilize AC voltage and to provide protection to connected equipment. The unit offers one (1) HID USB connectivity port with PC as well as one (1) 5VDC USB 2.0 charging port for portable devices such as mobile phones, MP3 players, and cameras. A cable collector apparatus is provided for an easy and tidy cord management.

PowerPanel® Personal Edition UPS Management software automatically saves computer files and gracefully shuts down the connected devices in the event of power loss or failures. For as long as you own this product, CyberPower will cover up to $75,000 of properly connected equipment if it’s ever damaged by a surge, including surges due to lightning strikes.



General
UPS Topology Line-interactive
Energy Saving Yes

Input
Voltage 220/230/240 Vac
Input Voltage Range 170Vac - 290Vac
Input Frequency Range 45-65Hz
Rated Input current 5.45A
Plug Type AU
Plug Style Straight Angle
Cord Length (ft.) 5
Cord Length (m) 1.5

Output
VA 1200
Watts 720
On Battery Waveform Simulated Sine Wave
On Battery Voltage 220-240Vac
Automatic Voltage Regulation (AVR) Single Boost / Single Buck
Automatic Voltage Regulation (Line Mode) Boost Mode Voltage: Vinx1.18Buck Mode Voltage: Vinx0.85
On Battery Frequency 50/60Hz ± 1%
Overload Protection On Utility: Circuit Breaker & Inter'N/Al circuitry limiting / On Battery: Inter'N/Al Current Limiting
Outlets - Total 8
Outlet Type AU
Outlets - Battery & Surge Protected 4
Outlets - Surge-Only Protected 4
USB Charging Ports Yes
Rated Power Factor 0.6
Transfer Time 4ms

Battery
Runtime at Half Load (min) 6
Runtime at Full Load (min) 1
Battery Type Sealed Lead Acid
Battery Number MH/MS5-12HR
Battery Size 12V/5.8AH
Battery Quantity 1
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 8 Hours
Replacement Battery Pack RBP0063
Replacement Battery Pack Quantity 2

Surge Protection & Filtering
Surge Suppression 125 Joules (L-N)
Phone / Network Protection RJ11/RJ45 1-In, 1-Out (Combo)

Management & Communications
LCD Control Panel Yes
Multifunction LCD Diagnostic Display Battery Capacity, Load Capacity, Estimated run time, Input voltage, Output voltage, Line mode Icon, Battery mode Icon, Overloaded Icon, Silent mode Icon, Fault Icon
HID Compliant USB Port Yes
Management Cable USB&Phone Cable
LED Indicators YES
Audible Alarms On Battery, Low Battery, Overload, Fault
Software PowerPanel® Personal Edition

Physical
Form Factor Brick
Enclosure Construction Plastic
Mounting Hardware Yes

Physical - UPS Module
Dimensions (WxHxD) (mm.) 166x118x288
Weight (kg.) 8.2

Environmental
Operating Temperature + 32°F to 104° F / 0° C to 40° C
Operating Humidity 0% - 90% non-condensing
Operating Elevation 0-10000 feet (0-3000meters)
Storage Temperature - 4°F to 122° F / -20° C to 50° C
Storage Relative Humidity 0% - 90%
Storage Elevation 0-3000 meters
Online Thermal Dissipation 137 BTU/hr
Audible noise at 1.5M from surface of unit <40dB

Certifications
Certifications CE/RCM
RoHS RoHS Compliant

Warranty
Product Warranty 2 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount 75000 AUD




Awards & Certifications
GreenPower UPS™ Technology
The GreenPower UPS™ technology represents multiple advanced energy-saving designs that improve the operating efficiency and eliminate waste energy consumption.
RoHS Compliant
CyberPower implements inter-nal controls throughout the business, building up the audit process and quality management to ensure its compliance of RoHS regulations

Feature Focus


Cable Collector

A well-suited solution to better assist in maintaining a neat and tidy work space. It simplifies the cable arrangement therefore increases the structural reliability for the total set of distribution cables.

External Battery Charger

The external battery charger is an add-on gadget allows you to charge additional 4 AA/AAA batteries while utilizing the UPS.

*Note: AA/AAA batteries are NOT included.
