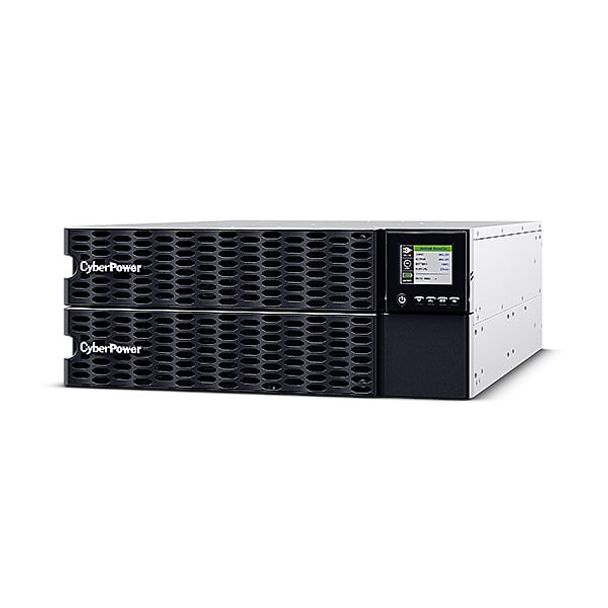

CyberPower OL10KERTHD Online Series 10000VA/10000W Rack/Tower Online UPS

CyberPower OL10KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs.

The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

FEATURES

• Online (Double Conversion) UPS Topology
• High Density Design
• High Output Power Factor
• Tiltable LCD Panel
• Surge and Spike Protection
• Controllable Outlet Groups
• Battery Management Technology
• Extended Battery Module (EBM)
• Emergency Power Off (EPO) Port
• PowerPanel Management Software
• ECO Mode
• Color LCD Panel
• Quick Charging Technology
• Automatically rotatable LCD
• Critical/Non-critical Load Outlets
• Generator Compatible
• Hot-swappable Batteries
• Smart Battery Management (SBM)
• SNMP/HTTP Remote Management Capability

OUTPUT

Capacity (VA)

10000

Capacity (Watts)

10000

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

200 ± 2%

208 ± 2%

220 ± 2%

230 ± 2%

240 ± 2%

Output Voltage Setting

Configurable

On Battery Frequency ( Hz )

50 ± 0.5%

60 ± 0.5%

Output Frequency Setting

Configurable

Power Factor

1

ECO Mode Voltage Tolerance

± 10 %

± 15 %

Overload Protection

Internal Current Limiting, Circuit Breaker

Overload Protection (Line Mode)

105~125% Load for 1 min, 125~150% Load for 10 sec

Overload Protection (Battery Mode)

105~130% Load for 10 sec, 130~150% Load for 2 sec

Overload Protection (Bypass Mode)

Circuit Breaker

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD＜3%

Harmonic Distortion (Non-linear Load)

THD＜5%

Internal Bypass

Automatic Bypass, Manual Bypass

Outlet(s) - Total

11

Outlet Type

IEC C19 x 4
IEC C13 x 6
Hardwire Terminal Block x 1

Outlet(s) - Battery & Surge Protected

11

Outlet(s) - Critical Load (CL)

1

Outlet(s) - Non-Critical Load (NCL)

10

Typical Transfer Time ( ms )

0
