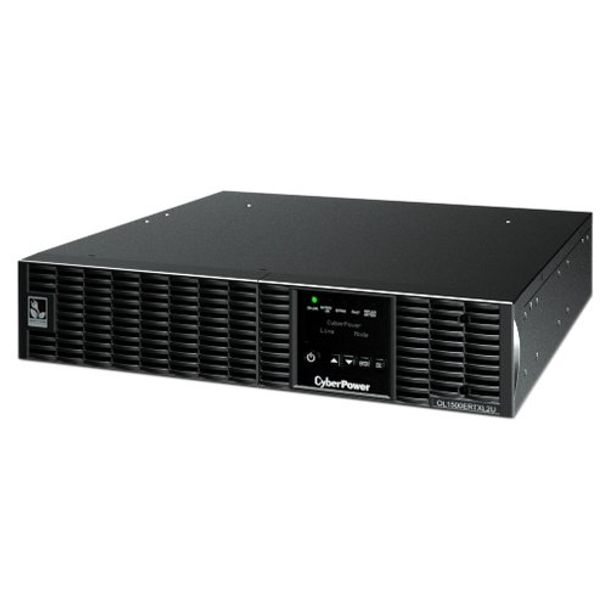

CyberPower OL1500ERTXL2U Online Series 1500 VA / 1350 Watts Online UPS

CyberPower OL1500ERTXL2U is a high-performance UPS featuring online double-conversion topology, which provides seamless pure sine wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. By manually setting the UPS to ECO Mode, the UPS automatically detects the input power quality and discerns whether it should operate in Line Mode or ECO Mode. Under poor power conditions, the UPS will run in Line Mode, which guarantees the highest level of protection and the best possible power quality. When the input power quality is acceptable, the UPS switches to ECO Mode, which increases the total output power efficiency by up to 95%.

FEATURES

• Online (Double Conversion) UPS Topology
• Energy Saving Technology
• Generator Compatible
• Overload Protection
• Critical/ Non-critical Load Outlets
• Zero Transfer Time
• Smart Battery Management (SBM)
• Hot-swappable Battery Packs
• External Battery Module (EBM)
• Surge and Spike Protection
• EMI and RFI Filtration
• Phone/ Fax/ Modem/ DSL/ Network Protection
• LCD Status Display
• Detachable LCD Panel
• Emergency Power Off (EPO) Port
• PowerPanel® Management Software
• SNMP/ HTTP Remote Management Capability
• Rack/ Tower Convertible Configurations

TYPICAL APPLICATION

• Data Closets
• NAS & Servers
• Home Theater Systems
• DVRs/Surveillance Systems
• POS Systems
• Transportation & Infrastructure
• Vehicle/Yacht
• Emergency Systems
• Electric Lighting
• Back Office
• Server Room
• Data Center

INPUT

Generator Compatibility

Yes

Nominal Input Voltage (Vac)

200

208

220

230

240

Input Voltage Range (Vac)

190 ~ 300

Adjustable Voltage Range (Vac)

0~60% Load for 120 ~ 139 Vac

0~70% Load for 140 ~ 159 Vac

0~80% Load for 160 ~ 179 Vac

0~90% Load for 180 ~ 189 Vac

0~100% Load for 190 ~ 300 Vac

Input Frequency (Hz)

50 ± 10

60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current (A)

7.5

Input Power Factor

0.99

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

IEC C13

OUTPUT

Capacity (VA)

1500

Capacity (Watts)

1350

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) (Vac)

200 ± 2%

208 ± 2%

220 ± 2%

230 ± 2%

240 ± 2%

Output Voltage Setting

Configurable

On Battery Frequency (Hz)

50 ± 0.5%

60 ± 0.5%

Output Frequency Setting

Configurable

ECO Mode Voltage Tolerance

± 10 %

± 15 %

Overload Protection

Internal Current Limiting , Circuit Breaker

Overload Protection (Line Mode)

105~125% Load for 1 min, 125~150% Load for 10 sec

Overload Protection (Battery Mode)

105~130% Load for 10 sec, 130~150% Load for 2 sec

Overload Protection (Bypass Mode)

Circuit Breaker

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD＜3%

Harmonic Distortion (Non-linear Load)

THD＜5%

Internal Bypass

Automatic Bypass , Manual Bypass

Outlet(s) - Total

8

Outlet Type

IEC C13 x 8

Outlet(s) - Battery & Surge Protected

8

Outlet(s) - Critical Load (CL)

4

Outlet(s) - Non-Critical Load (NCL)

4

Typical Transfer Time (ms)

0
