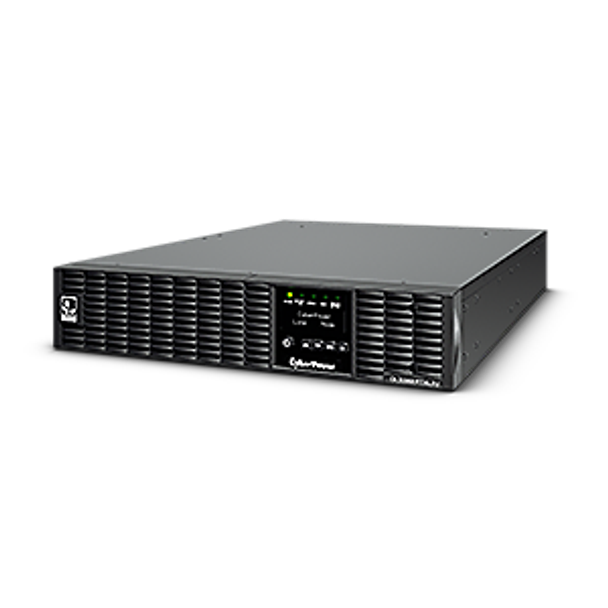

CyberPower OL3000ERTXL2U Online Series 3000VA Rack/Tower UPS

CyberPower OL3000ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and Emergency Power Off (EPO) switch to allow users to shut off UPS immediately during emergency. To extend battery lifetime, the UPS adopts Smart Battery Management (SBM) to enhance battery charging process and achieve a lower total cost of ownership. This model also features detachable LCD display panel to relocate the panel for convenient monitoring, and RJ11/RJ45 port to provide data line protection against surges and spikes. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Critical/Non-critical Load Outlets
• Smart Battery Management (SBM)
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

• ECO Mode
• Overload Protection
• Zero Transfer Time
• Hot-swappable Batteries
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Detachable LCD Panel
• PowerPanel Management Software
• Rack/Tower Convertible Configurations

• OL3000ERTXL2U UPS
• Rackmount Rail
• Rackmount Ears
• Screw Kit
• Power Cord
• USB Cable
• Serial Cable
• Phone Line
• User's Manual
• Product Registration Card

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

Phase

Single Phase

Form Factor

Rackmount, Tower

UPS Topology

Online Double Conversion

Energy Saving Technology

Online ECO Mode Efficiency

Active PFC Compatibility

Yes

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

200

208

220

230

240

Input Voltage Range ( Vac )

190 ~ 300

Adjustable Voltage Range ( Vac )

0~60% Load for 120 ~ 139 Vac

0~70% Load for 140 ~ 159 Vac

0~80% Load for 160 ~ 179 Vac

0~90% Load for 180 ~ 189 Vac

0~100% Load for 190 ~ 300 Vac

Input Frequency ( Hz )

50 ± 10

60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

15

Input Power Factor

0.99

Input Connector Type

IEC C20

Detachable Power Cord Plug Type

IEC C19 x 1

Power Cord Length (ft.)

10

Power Cord Length (m.)

3

Capacity (VA)

3000

Capacity (Watts)

2700

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

200 ± 2 %

208 ± 2 %

220 ± 2 %

230 ± 2 %

240 ± 2 %

Output Voltage Setting

Configurable

On Battery Frequency ( Hz )

50 ± 0.5%

60 ± 0.5%

Output Frequency Setting

Configurable

Power Factor

0.9

ECO Mode Voltage Tolerance

± 10 %

± 15 %

Overload Protection

Internal Current Limiting, Circuit Breaker

Overload Protection (Line Mode)

105~125% Load for 1 min, 125~150% Load for 10 sec

Overload Protection (Battery Mode)

105~130% Load for 10 sec, 130~150% Load for 2 sec

Overload Protection (Bypass Mode)

Circuit Breaker

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD＜3%

Harmonic Distortion (Non-linear Load)

THD＜5%

Internal Bypass

Automatic Bypass, Manual Bypass

Outlet(s) - Total

9

Outlet Type

IEC C13 x 8
IEC C19 x 1

Outlet(s) - Battery & Surge Protected

9

Outlet(s) - Critical Load (CL)

5

Outlet(s) - Non-Critical Load (NCL)

4

Typical Transfer Time ( ms )

0

Runtime at Half Load ( min )

11

Runtime at Full Load ( min )

3

Typical Recharge Time ( Hours )

5

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Yes

Hot-swappable

Yes

Battery Type

Sealed Lead-acid

Battery Cartridge (RBP)

RBP

Battery Cartridge (RBP) Quantity ( pcs )

1

Battery Quantity (Each RBP) ( pcs )

6

Battery Voltage (Each RBP) ( V )

72

Compatible Extended Battery Module (EBM)

BPE72V60ART2US

Max. EBM Quantity ( pcs )

10

Surge Suppression ( Joules )

1335

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

LCD Panel

Yes

LCD Types

Detachable LCD Panel

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language

LED Indicators

Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery

HID Compliant USB Port(s)

1

Dry Contact (with Relay)

Yes

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )

Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1

Power Management Software

PowerPanel Business (Recommended)

SNMP/HTTP Remote Monitoring

Yes - with optional RMCARD205

Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Rackmount Ears

Yes

Dimensions (WxHxD) (in.)

17 x 3.5 x 34.6

Dimensions (WxHxD) (mm.)

433 x 88 x 600

Weight (lbs.)

70.4

Weight (kg.)

32

Installed Rack Height ( U )

2

Dimensions (WxHxD) (in.)

22.2 x 9.4 x 34.6

Dimensions (WxHxD) (mm.)

565 x 240 x 880

Weight (lbs.)

86.9

Weight (kg.)

39.5

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

5 ~ 113

Storage Temperature (°C)

-15 ~ 45

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 95

Storage Elevation ( feet/meters )

0-49,213 feet (0-15,000 meters)

Online Thermal Dissipation ( BTU/hr )

1139

Audible Noise at 1.5M from Surface of Unit ( dBA )

55

Certifications

CE, BSMI, C-Tick

RoHS

Yes

Product Warranty Period (Year)

2

Battery Warranty Period (Year)

2
