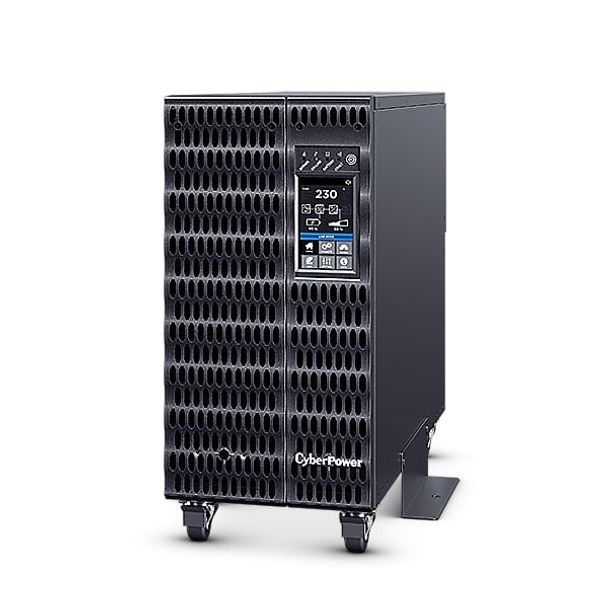

CyberPower OL3T030KERTHDS 3 phase HD Rack UPS 30KVA/30KW Charger
Model
OL3T030KERTHDS
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$6,844.30
CyberPower OL3T030KERTHDS guarantees backup power and protection for IT equipment such as FTTx devices, networking devices and NAS/storage devices. It is typically integrated in the back office, server room, and data center environments. With integrated IGBT technology and intelligent DSP-based control, the product produces less input total harmonic distortion (THDi), achieving higher power efficiency. Supporting flexible placement, the selected product can be installed in a rack or tower configuration, and it's compatible with 19” standard rack cabinets. In addition, the product features parallel expansion, allowing the connections of multiple UPS units to reach higher capacity. Its color LCD with touch panel enables easy monitoring and configuration of the system. Furthermore, the LCD panel can also be adjusted to vertical or horizontal display through LCD setting.
Features
- Three-phase Design
- High Output Power Factor
- Color LCD Panel
- Generator Compatible
- UPS Parallel Expansion
- Smart Battery Management (SBM)
- PowerPanel Management Software
- Online (Double Conversion) UPS Topology
- Rack Modular Design
- LCD Touch Panel
- Pure Sine Wave Output
- Battery Cold Start
- SNMP/HTTP Remote Management Capability (Optional)
- Extended Battery Module (EBM)
General
Phase
| Three Phase |
Form Factor
| Tower |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| ECO Mode Efficiency up to 98.9% |
Normal Mode Efficiency ( % )
| 95.8% |
Battery Mode Efficiency ( % )
| 95.5% |
Active PFC Compatibility
| Yes |
Parallel Expansion (Max. Units)
| 4 |
Input
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac |
Input Voltage Range ( Vac )
| Line to Neutral (L-N): 132 ~ 276 Vac |
| Line to Line (L-L): 228 ~ 478 Vac |
Default Input Voltage Range (Bypass)
| 10% ~ -15% |
Input Frequency Range ( Hz )
| 40 ~ 70 |
Configurable Frequency Tolerance (Bypass)
| ± 10 % |
| ± 20 % |
Rated Input Current ( A )
| 48.5 |
THDI (%)
| <3% (Full Linear Load) |
Input Power Factor
| 0.99 |
Overload Protection (Bypass)
| 125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms |
Input Connector
| L1, L2, L3, N, G |
Input Connector Type
| Hardwire Terminal Block |
Output
Capacity (VA)
| 30000 |
Capacity (Watts)
| 30000 |
On Battery Waveform
| Pure Sine Wave |
Output Voltage Setting
| Configurable |
Output Frequency Setting
| Configurable |
Rated Output Voltage ( Vac )
| Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac |
Output Voltage Tolerance ( % )
| Balance Load: 1 % |
Output Frequency ( Hz ± % )
| 50 ± 0.2 |
| 60 ± 0.166 |
Power Factor
| 1 |
ECO Mode Voltage Tolerance
| ± 5 % |
Overload Protection
| Internal Current Limiting, Fuse |
Overload Protection (Line Mode)
| 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ＞150% Load for 200 ms |
Overload Protection (Battery Mode)
| 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, ＞150% Load for 200 ms |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜1% |
Harmonic Distortion (Non-linear Load)
| THD＜3% |
Internal Bypass
| Automatic Bypass |
Synchronization Window (Nominal) ( Hz )
| ± 4 |
Output Connector
| L1, L2, L3, N, G |
Outlet Type
| Hardwire Terminal Block x 1 |
Typical Transfer Time ( ms )
| 0 |
Battery
Maximum Charging Current ( A )
| 12 |
Typical Charging Current ( A )
| 3.6 |
Compatible Battery Types
| VRLA |
Recharge Power Setting
| Configurable |
Charger Voltage Tolerance ( % )
| ≤ 1 % |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
Battery Voltage ( V )
| ±240 |
Compatible Extended Battery Module (EBM)
| BME480V55ART5U |
Compatible Extended Battery Module (EBM) Note
| Models rated 30kVA and above require at least two EBMs to support full capacity |
Compatible Extended Battery Cabinet (EBC)
| SMBF17, SMBF20, SMBF26, SMBF33, SMBF40, SMBF65, BCA100N125, BCA12N63, BCA20N125, BCA40N125 |
External Battery Quantity
| 12V x 40(Default)/32/36pcs |
Surge Protection & Filtering
EMI/RFI Filtration
| Yes |
Management & Communications
LCD Panel
| Yes |
LCD Types
| Color LCD, LCD Touch Panel |
LCD Orientation
| Rotatable LCD – Manual |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control
| Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language |
LED Indicators
| Yes |
Shortcut Button
| Alarm On/Off |
Serial Port
| RS485 x 1 + Dry Contact x 1 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
Power Management Software
| PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
Physical
Enclosure Construction
| Metal |
Color
| Black |
Ingress Protection
| IP20 |
Rackmount Rail
| Yes |
Physical Size - UPS Module
Dimensions (WxHxD) (in.)
| 8.62 x 19.02 x 29.92 |
Dimensions (WxHxD) (mm.)
| 219 x 483 x 760 |
Weight (lbs.)
| 98.55 |
Weight (kg.)
| 44.7 |
Environmental
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Temperature Note
| Derating to 80% load between 41℃ and 50℃ |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Operating Elevation Note
| At ≤1,000m above sea level, de-rate power by 1% per 100m between 1,000m and 3,048m |
Storage Temperature (°F)
| -40 ~ 158 |
Storage Temperature (°C)
| -40 ~ 70 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Audible Noise at 1.0M from Surface of Unit
| 66dBA(100% load) |
| 56dBA(50% load) |
Certifications
Certifications
| CE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1 |
RoHS
| Yes |
| GTIN | 4711027798479 |
|---|
