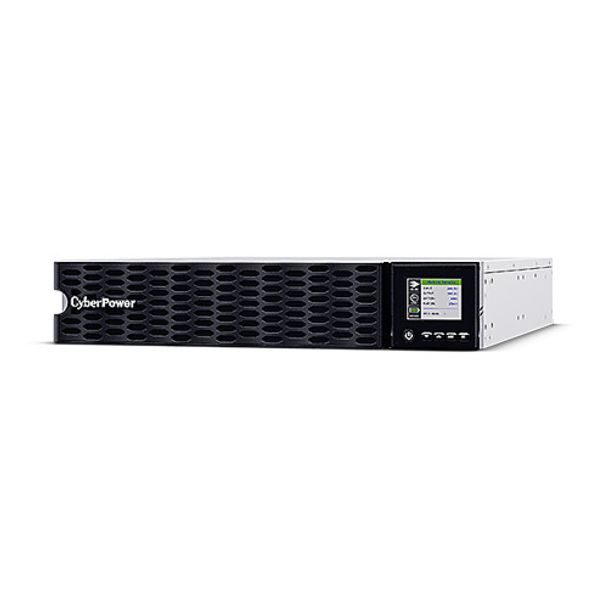

Cyberpower OL6KERTHD Online Series 6000VA/6000W Rack/Tower Online UPS
Model
OL6KERTHD
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$5,999.00
CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7AH - Built-in Equalisation Module (EQM) for battery life extension(OL6KERTHD) -2 Yr
CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel® Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- High Density Design
- Color LCD Panel
- High Output Power Factor
- Quick Charging Technology
- Tiltable LCD Panel
- Automatic LCD screen orientation
- Rotatable LCD panel
- Surge and Spike Protection
- Critical/Non-critical Load Outlets
- Generator Compatible
- Battery Management Technology
- Hot-swappable Batteries
- Extended Battery Module (EBM)
- Smart Battery Management (SBM)
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Management Software
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations
GENERAL
Phase
| Single Phase |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| Online ECO Mode Efficiency > 96% |
Active PFC Compatibility
| Yes |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 200 ± 2% |
| 208 ± 2% |
| 220 ± 2% |
| 230 ± 2% |
| 240 ± 2% |
Input Voltage Range ( Vac )
| 180 ~ 280 |
Adjustable Voltage Range ( Vac )
| 0~25% Load for 120 ~ 139 Vac |
| 0~50% Load for 140 ~ 159 Vac |
| 0~75% Load for 160 ~ 179 Vac |
| 0~100% Load for 180 ~ 280 Vac |
Input Frequency ( Hz )
| 50 ± 10 |
| 60 ± 10 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 32 |
Input Power Factor
| 0.99 |
Input Connector Type
| Hardwire Terminal Block |
OUTPUT
Capacity (VA)
| 6000 |
Capacity (Watts)
| 6000 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 200 ± 2% |
| 208 ± 2% |
| 220 ± 2% |
| 230 ± 2% |
| 240 ± 2% |
Output Voltage Setting
| Configurable |
On Battery Frequency ( Hz )
| 50 ± 0.5% |
| 60 ± 0.5% |
Output Frequency Setting
| Configurable |
Power Factor
| 1 |
ECO Mode Voltage Tolerance
| ± 10 % |
| ± 15 % |
Overload Protection
| Internal Current Limiting , Circuit Breaker , Fuse |
Overload Protection (Line Mode)
| 105~125% Load for 1 min, 125~150% Load for 10 sec |
Overload Protection (Battery Mode)
| 105~130% Load for 10 sec, 130~150% Load for 2 sec |
Overload Protection (Bypass Mode)
| Circuit Breaker |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜3% |
Harmonic Distortion (Non-linear Load)
| THD＜5% |
Internal Bypass
| Automatic Bypass , Manual Bypass |
Outlet(s) - Total
| 7 |
Outlet Type
| IEC C13 x 4 | |
| IEC C19 x 2 | |
| Hardwire Terminal Block x 1 |
Outlet(s) - Battery & Surge Protected
| 7 |
Outlet(s) - Critical Load (CL)
| 4 |
Outlet(s) - Non-Critical Load (NCL)
| 3 |
Typical Transfer Time ( ms )
| 0 |
BATTERY
Runtime at Half Load ( min )
| 6.4 |
Runtime at Full Load ( min )
| 2.3 |
Typical Recharge Time ( Hours )
| 4 |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
Built-in Battery Management Module
| Yes |
User-replaceable
| Yes - Qualified Personnel Only |
Hot-swappable
| Yes |
Battery Type
| Sealed Lead-acid |
Replacement Battery Pack
| RBP0144 |
RBP Quantity ( pcs )
| 1 |
Battery Quantity (Each RBP) ( pcs )
| 12 |
Battery Voltage (Each RBP) ( V )
| 144 |
Single Battery Capacity ( AH )
| 12 V 7 AH |
Extended Battery Module (EBM)
| BPE144VL2U01 (Built-in Charger) |
Max. EBM Quantity ( pcs )
| 10 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 2430 |
EMI/RFI Filtration
| Yes |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
Color LCD
| Yes |
LCD Orientation
| Automatic LCD screen orientation , Rotatable LCD panel |
Tiltable LCD Panel
| 18° |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting , Language |
LED Indicators
| Power On |
HID Compliant USB Port(s)
| 1 |
Serial Port
| Combo (RS232 + Dry Contact) |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery |
Management Cable ( pcs )
| USB Cable x1 , Serial Cable x1 |
Power Management Software
| PowerPanel®Business (with optional RMCARD) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Rack/Tower |
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
High Density Design
| Yes |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 17 x 3.4 x 28.3 |
Dimensions (WxHxD) (mm.)
| 433 x 86.5 x 720 |
Weight (lbs.)
| 92.4 |
Weight (kg.)
| 42 |
Installed Rack Height ( U )
| 2 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 23.6 x 13.2 x 43.3 |
Dimensions (WxHxD) (mm.)
| 600 x 335 x 1100 |
Weight (lbs.)
| 114.6 |
Weight (kg.)
| 52.1 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F)
| 23 ~ 113 |
Storage Temperature (°C)
| -5 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-14,700 feet (0-4,500 meters) |
Online Thermal Dissipation ( BTU/hr )
| 1613 |
Audible Noise at 1.0M from Surface of Unit
| 43~66 dBA (0~100 % load) |
CERTIFICATIONS
Certifications
| CE , EAC , RCM |
RoHS
| Yes |
| GTIN | 4712364142802 |
|---|
