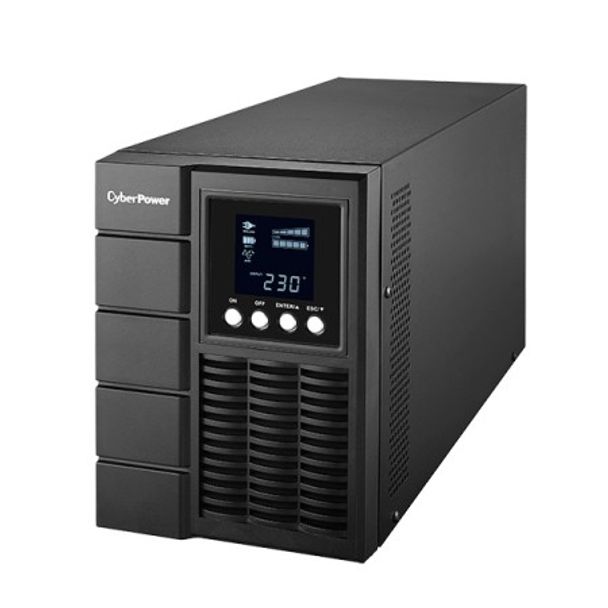

CyberPower OLS1000E UPS 1000VA/800W LCD
Model
OLS1000E
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$679.00
OLS1000E UPS 1000VA/800W LCD
CyberPower OLS1000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Tower Form Factor
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations
GENERAL
Phase
| Single Phase |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| Online ECO Mode Efficiency > 95% |
Active PFC Compatibility
| Yes |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 160 ~ 300 |
Adjustable Voltage Range ( Vac )
| 0~50% Load for 110 ~ 300 Vac |
| 0~60% Load for 120 ~ 300 Vac |
| 0~80% Load for 140 ~ 300 Vac |
| 0~100% Load for 160 ~ 300 Vac |
Input Frequency ( Hz )
| 50 ± 10 |
| 60 ± 10 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 4.5 |
Input Power Factor
| 0.98 |
Input Connector Type
| IEC C14 |  |
Detachable Power Cord Plug Type
| AU |  |
Power Cord Length (ft.)
| 5.9 |
Power Cord Length (m.)
| 1.8 |
OUTPUT
Capacity (VA)
| 1000 |
Capacity (Watts)
| 900 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 208 ± 1% |
| 220 ± 1% |
| 230 ± 1% |
| 240 ± 1% |
Output Voltage Setting
| Configurable |
On Battery Frequency ( Hz )
| 50 ± 0.5% |
| 60 ± 0.5% |
Output Frequency Setting
| Configurable |
Power Factor
| 0.9 |
ECO Mode Voltage Tolerance
| ± 15 % |
Overload Protection
| Internal Current Limiting , Circuit Breaker , Fuse |
Overload Protection (Line Mode)
| 110~120% Load for 1 min, >120% Load Immediately |
Overload Protection (Battery Mode)
| 110~120% Load for 10 sec, >120% Load Immediately |
Overload Protection (Bypass Mode)
| >130% Load Immediately |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜3% |
Harmonic Distortion (Non-linear Load)
| THD＜5% |
Internal Bypass
| Automatic Bypass , Manual Bypass |
Outlet(s) - Total
| 4 |
Outlet Type
| IEC C13 x 4 |  |
Outlet(s) - Battery & Surge Protected
| 4 |
Typical Transfer Time ( ms )
| 0 |
BATTERY
Runtime at Half Load ( min )
| 15 |
Runtime at Full Load ( min )
| 5 |
Typical Recharge Time ( Hours )
| 5 |
Maximum Charging Current ( A )
| 1 |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
Single Battery Capacity ( AH )
| 12 V 7 AH |
Extended Battery Module (EBM)
| BPSE36V45A |
Max. EBM Quantity ( pcs )
| 3 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 440 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting |
HID Compliant USB Port(s)
| 1 |
Serial Port
| RS232 |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery |
Management Cable ( pcs )
| Power Cord x2 , USB Cable x1 , Phone Line x1 |
Power Management Software
| PowerPanel® Business |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Tower |
Enclosure Construction
| Metal |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 5.94 x 8.86 x 15.51 |
Dimensions (WxHxD) (mm.)
| 151 x 225 x 394 |
Weight (lbs.)
| 28.88 |
Weight (kg.)
| 13.1 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 9.5 x 12.32 x 20.08 |
Dimensions (WxHxD) (mm.)
| 241 x 313 x 510 |
Weight (lbs.)
| 32.19 |
Weight (kg.)
| 14.6 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 20 ~ 90 |
Operating Elevation ( feet/meters )
| 0-5,000 feet (0-1,500 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 10 ~ 90 |
Storage Elevation ( feet/meters )
| 0-5,000 feet (0-1,500 meters) |
Online Thermal Dissipation ( BTU/hr )
| 342 |
Audible Noise at 1.5M from Surface of Unit ( dBA )
| 45 |
CERTIFICATIONS
Certifications
| CE , RCM |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 2 |
Battery Warranty Period (Year)
| 2 |
| GTIN | 4712856271300 |
|---|
