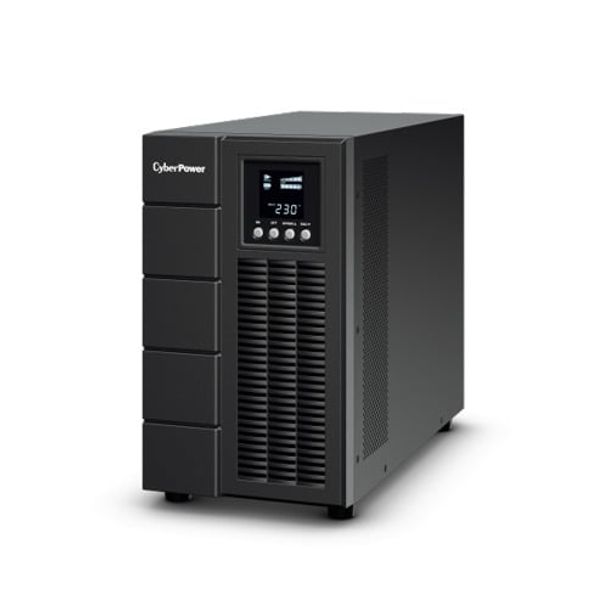

CyberPower OLS3000E UPS 3000VA 2700W LCD
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | Available in 24 Hours |
CyberPower OLS3000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
-
Online (Double Conversion) UPS Topology
-
Generator Compatible
-
Zero Transfer Time
-
Extended Battery Module (EBM)
-
EMI and RFI Filtration
-
LCD Status Display
-
PowerPanel Management Software
-
ECO Mode
-
Overload Protection
-
Smart Battery Management (SBM)
-
Surge and Spike Protection
-
Phone/Fax/Modem/DSL/Network Protection
-
Emergency Power Off (EPO) Port
SPECIFICATIONS
|
GENERAL |
|
|
Phase |
Single Phase |
|
Form Factor |
Tower |
|
UPS Topology |
Online Double Conversion |
|
Energy Saving Technology |
Online ECO Mode Efficiency > 95% |
|
Active PFC Compatibility |
Yes |
|
INPUT |
|
|
Generator Compatibility |
Yes |
|
Nominal Input Voltage ( Vac ) |
230 ± 10% |
|
Input Voltage Range ( Vac ) |
190 ~ 300 |
|
Adjustable Voltage Range ( Vac ) |
0~50% Load for 110 ~ 300 Vac 0~60% Load for 140 ~ 300 Vac 0~80% Load for 160 ~ 300 Vac 0~100% Load for 190 ~ 300 Vac |
|
Input Frequency ( Hz ) |
50 ± 10 60 ± 10 |
|
Input Frequency Detection |
Auto-sensing |
|
Rated Input Current ( A ) |
13.04 |
|
Input Power Factor |
0.98 |
|
Input Connector Type |
IEC C20 |
|
Detachable Power Cord Plug Type |
AU x 1 |
|
Power Cord Length (ft.) |
5.9 |
|
Power Cord Length (m.) |
1.8 |
|
OUTPUT |
|
|
Capacity (VA) |
3000 |
|
Capacity (Watts) |
2700 |
|
On Battery Waveform |
Pure Sine Wave |
|
On Battery Voltage(s) ( Vac ) |
208 ± 1 % 220 ± 1 % 230 ± 1 % 240 ± 1 % |
|
Output Voltage Setting |
Configurable |
|
On Battery Frequency ( Hz ) |
50 ± 0.5% 60 ± 0.5% |
|
Output Frequency Setting |
Configurable |
|
Power Factor |
0.9 |
|
ECO Mode Voltage Tolerance |
± 15 % |
|
Overload Protection |
Internal Current Limiting, Circuit Breaker, Fuse |
|
Overload Protection (Line Mode) |
110~120% Load for 1 min, >120% Load Immediately |
|
Overload Protection (Battery Mode) |
110~120% Load for 10 sec, >120% Load Immediately |
|
Overload Protection (Bypass Mode) |
>130% Load Immediately |
|
Crest Factor |
3 : 1 |
|
Harmonic Distortion (Linear Load) |
THD＜3% |
|
Harmonic Distortion (Non-linear Load) |
THD＜5% |
|
Internal Bypass |
Automatic Bypass, Manual Bypass |
|
Outlet(s) - Total |
6 |
|
Outlet Type |
IEC C19 x 1 Hardwire Terminal Block x 1 IEC C13 x 4 |
|
Outlet(s) - Battery & Surge Protected |
5 |
|
Typical Transfer Time ( ms ) |
0 |
|
BATTERY |
|
|
Runtime at Half Load ( min ) |
14 |
|
Runtime at Full Load ( min ) |
4 |
|
Typical Recharge Time ( Hours ) |
5 |
|
Maximum Charging Current ( A ) |
1 |
|
Start On Battery |
Yes |
|
Smart Battery Management (SBM) |
Yes |
|
User-replaceable |
No |
|
Battery Type |
Sealed Lead-acid |
|
Compatible Extended Battery Module (EBM) |
BPSE72V45A |
|
Max. EBM Quantity ( pcs ) |
3 |
|
SURGE PROTECTION & FILTERING |
|
|
Surge Suppression ( Joules ) |
440 |
|
EMI/RFI Filtration |
Yes |
|
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
|
MANAGEMENT & COMMUNICATIONS |
|
|
LCD Panel |
Yes |
|
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
|
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting |
|
HID Compliant USB Port(s) |
1 |
|
Emergency Power Off (EPO) Port |
Yes |
|
Audible Alarms |
Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
|
Management Cable ( pcs ) |
Power Cord x2, USB Cable x1, Phone Line x1 |
|
Power Management Software |
PowerPanel Business (Recommended) |
|
PHYSICAL |
|
|
Enclosure Construction |
Metal |
|
Color |
Black |
|
PHYSICAL SIZE - UPS MODULE |
|
|
Dimensions (WxHxD) (in.) |
7.72 x 12.27 x 16.38 |
|
Dimensions (WxHxD) (mm.) |
196 x 337 x 416 |
|
Weight (lbs.) |
62.17 |
|
Weight (kg.) |
28.2 |
|
ENVIRONMENTAL |
|
|
Operating Temperature (°F) |
32 ~ 104 |
|
Operating Temperature (°C) |
0 ~ 40 |
|
Operating Relative Humidity (Non-condensing) ( % ) |
20 ~ 90 |
|
Operating Elevation ( feet/meters ) |
0-4,921 feet (0-1,500 meters) |
|
Storage Temperature (°F) |
-4 ~ 122 |
|
Storage Temperature (°C) |
-20 ~ 50 |
|
Storage Relative Humidity (Non-condensing) ( % ) |
10 ~ 90 |
|
Storage Elevation ( feet/meters ) |
0-4,921 feet (0-1,500 meters) |
|
Online Thermal Dissipation ( BTU/hr ) |
1126 |
|
Audible Noise at 1.5M from Surface of Unit ( dBA ) |
45 |
|
CERTIFICATIONS |
|
|
Certifications |
CE, RCM |
|
RoHS |
Yes |
|
OTHERS |
|
|
What’s in the Box |
OLS3000E UPS Power Cord USB Cable Phone Line User's Manual * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
| GTIN | 4712856271331 |
|---|
