Cyberpower OLS3000ERT2Ua Online S (A) 3000VA/2700W Rack UPS
Model
OLS3000ERT2Ua
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$1,379.00

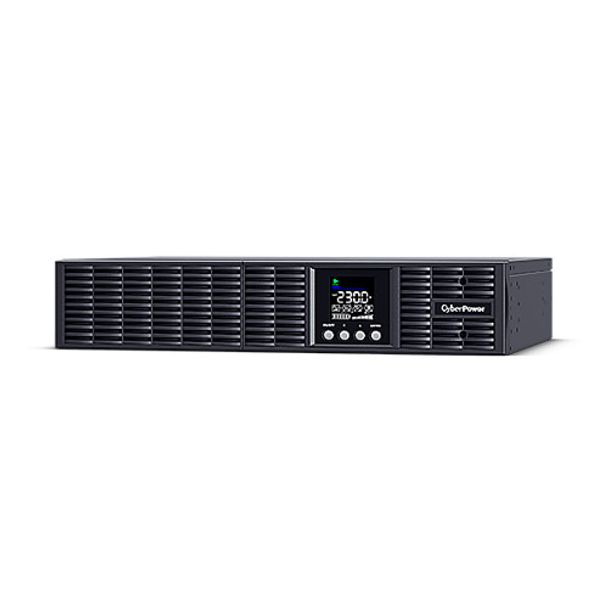

Cyberpower OLS3000ERT2Ua Online S (A) 3000VA/2700W Rack UPS
CyberPower OLS3000ERT2Ua is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
What's in the box
- 1. OLS3000ERT2UA UPS
- 2. Rackmount Rail
- 3. Rackmount Ears
- 4. Screw Kit
- 5. Power Cord
- 6. USB Cable
- 7. User's Manual
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module Auto-detection
- Surge and Spike Protection
- Critical/Non-critical Load Outlets
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- Color LCD Panel
- Variable Speed Fans
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack Mount Form Factor
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations
GENERAL
Phase
| Single Phase |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| Online ECO Mode Efficiency > 95% |
Active PFC Compatibility
| Yes |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 190 ~ 300 |
Adjustable Voltage Range ( Vac )
| 0~30% Load for 80 ~ 300 Vac |
| 0~60% Load for 140 ~ 300 Vac |
| 0~80% Load for 160 ~ 300 Vac |
| 0~100% Load for 190 ~ 300 Vac |
Input Frequency ( Hz )
| 50 ± 10 |
| 60 ± 10 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 13 |
Input Power Factor
| 0.99 |
Input Connector Type
| IEC C20 |  |
Detachable Power Cord Plug Type
| Schuko x 1 |  |
Power Cord Length (ft.)
| 5 |
Power Cord Length (m.)
| 1.5 |
OUTPUT
Capacity (VA)
| 3000 |
Capacity (Watts)
| 2700 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 208 ± 1% |
| 220 ± 1% |
| 230 ± 1% |
| 240 ± 1% |
Output Voltage Setting
| Configurable |
On Battery Frequency ( Hz )
| 50 ± 0.5% |
| 60 ± 0.5% |
Output Frequency Setting
| Configurable |
Power Factor
| 0.9 |
ECO Mode Voltage Tolerance
| ± 15 % |
Overload Protection
| Internal Current Limiting, Circuit Breaker, Fuse |
Overload Protection (Line Mode)
| 110~120% Load for 1 min, >120% Load Immediately |
Overload Protection (Battery Mode)
| 110~120% Load for 10 sec, >120% Load Immediately |
Overload Protection (Bypass Mode)
| >130% Load Immediately |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜3% |
Harmonic Distortion (Non-linear Load)
| THD＜5% |
Internal Bypass
| Automatic Bypass, Manual Bypass |
Outlet(s) - Total
| 9 |
Outlet Type
| IEC C19 x 1 |  |
| IEC C13 x 8 |  |
Outlet(s) - Battery & Surge Protected
| 9 |
Outlet(s) - Critical Load (CL)
| 5 |
Outlet(s) - Non-Critical Load (NCL)
| 4 |
Typical Transfer Time ( ms )
| 0 |
BATTERY
Runtime at Half Load ( min )
| 11 |
Runtime at Full Load ( min )
| 4 |
Typical Recharge Time ( Hours )
| 4 |
Maximum Charging Current ( A )
| 1.5 |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
User-replaceable
| Yes - Qualified Personnel Only |
Hot-swappable
| Yes |
Battery Type
| Sealed Lead-acid |
Replacement Battery Pack
| RBP0158 |
RBP Quantity ( pcs )
| 1 |
Battery Quantity (Each RBP) ( pcs )
| 6 |
Battery Voltage (Each RBP) ( V )
| 72 |
Single Battery Capacity ( AH )
| 12 V 9 AH |
Extended Battery Module (EBM)
| BPSE72V40ART2U |
Max. EBM Quantity ( pcs )
| 3 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 388 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Orientation
| Configurable LCD screen orientation |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control
| Mode Setting, Alarm Setting, Input & Output, Battery Setting |
HID Compliant USB Port(s)
| 1 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
Management Cable ( pcs )
| Power Cord x2, USB Cable x1 |
Power Management Software
| PowerPanel® Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Rack |
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 17.24 x 3.46 x 24.2 |
Dimensions (WxHxD) (mm.)
| 438 x 88 x 610 |
Weight (lbs.)
| 60.85 |
Weight (kg.)
| 27.6 |
Installed Rack Height ( U )
| 2 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 21.3 x 9 x 28.7 |
Dimensions (WxHxD) (mm.)
| 540 x 230 x 730 |
Weight (lbs.)
| 67.9 |
Weight (kg.)
| 30.8 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 20 ~ 90 |
Operating Elevation ( feet/meters )
| 0-5,000 feet (0-1,500 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 10 ~ 90 |
Storage Elevation ( feet/meters )
| 0-5,000 feet (0-1,500 meters) |
Online Thermal Dissipation ( BTU/hr )
| 1023 |
CERTIFICATIONS
Certifications
| CE, EAC |
RoHS
| Yes |
| GTIN | 4712856273854 |
|---|
