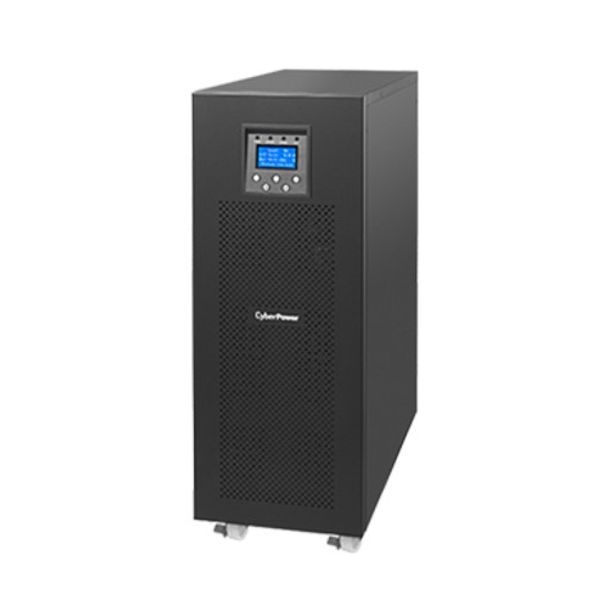

Cyberpower OLS6000E ONLINE UPS TOWER With LCD
Model
OLS6000E
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$3,599.00
Cyberpower OLS6000E ONLINE UPS TOWER WITH LCD
CyberPower OLS6000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.
FEATURES
- Online (Double Conversion) UPS Topology
- Energy Saving Technology
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- Maintenance Bypass Switch
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Tower Form Factor
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations
AWARDS & CERTIFICATION
Cisco Compatible
This product has demonstrated the interoperability with Cisco technologies so that be recognized “Cisco Compatible”.
GreenPower UPS™
GreenPower UPS™ Technology improves operating efficiency and minimizes energy consumption, so that users can enjoy significant energy cost savings over conventional UPS systems.
GENERAL
Phase
| Single Phase |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| Online ECO Mode Efficiency > 96% |
Active PFC Compatibility
| Yes |
Parallel Expansion (Max. Units)
| 4 |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 |
Input Voltage Range ( Vac )
| 110 ~ 276 |
Adjustable Voltage Range ( Vac )
| 0~80% Load for 110 ~ 276 Vac |
| 0~100% Load for 176 ~ 276 Vac |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 6 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 27.3 |
Input Power Factor
| 0.99 |
Input Connector Type
| Hardwire Terminal Block |
OUTPUT
Capacity (VA)
| 6000 |
Capacity (Watts)
| 5400 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 208 ± 1% |
| 220 ± 1% |
| 230 ± 1% |
| 240 ± 1% |
Output Voltage Setting
| Configurable |
On Battery Frequency ( Hz )
| 50 ± 0.1% |
| 60 ± 0.1% |
Output Frequency Setting
| Configurable |
Power Factor
| 0.9 |
ECO Mode Voltage Tolerance
| ± 10 % |
Overload Protection
| Internal Current Limiting , Circuit Breaker , Fuse |
Overload Protection (Line Mode)
| 105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec |
Overload Protection (Battery Mode)
| 105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec |
Overload Protection (Bypass Mode)
| 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD＜2% |
Harmonic Distortion (Non-linear Load)
| THD＜5% |
Internal Bypass
| Automatic Bypass , Manual Bypass |
Maintenance Bypass
| Yes |
Outlet(s) - Total
| 1 |
Outlet Type
| Hardwire Terminal Block x 1 |
Typical Transfer Time ( ms )
| 0 |
BATTERY
Runtime at Half Load ( min )
| 18 |
Runtime at Full Load ( min )
| 7 |
Typical Recharge Time ( Hours )
| 7 |
Maximum Charging Current ( A )
| 1 |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
Single Battery Capacity ( AH )
| 12 V 7 AH |
Extended Battery Module (EBM)
| BPSE240V47A |
Max. EBM Quantity ( pcs )
| 15 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 445 |
EMI/RFI Filtration
| Yes |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting |
LED Indicators
| Line Mode , Battery Mode , Bypass Mode , UPS Fault |
HID Compliant USB Port(s)
| 1 |
Serial Port
| RS232 |
Dry Contact (with Relay)
| Optional |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault |
Management Cable ( pcs )
| USB Cable x1 |
Power Management Software
| PowerPanel® Business Edition |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Form Factor
| Tower |
Enclosure Construction
| Metal |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 10.24 x 27.87 x 21.65 |
Dimensions (WxHxD) (mm.)
| 260 x 708 x 550 |
Weight (lbs.)
| 154.3 |
Weight (kg.)
| 70 |
PHYSICAL SIZE - BATTERY MODULE
Dimensions (WxHxD) (in.)
| 10.24 x 28.27 x 21.65 |
Dimensions (WxHxD) (mm.)
| 260 x 718 x 550 |
Weight (lbs.)
| 231.5 |
Weight (kg.)
| 105 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 16.85 x 38.18 x 28.35 |
Dimensions (WxHxD) (mm.)
| 428 x 970 x 720 |
Weight (lbs.)
| 180.8 |
Weight (kg.)
| 82 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| ≤1000, Load Derated 1% per 100m from 1000m and 2000m |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-50,000 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 1603 |
Audible Noise at 1.5M from Surface of Unit ( dBA )
| 60 |
CERTIFICATIONS
Certifications
| CE |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 2 |
Battery Warranty Period (Year)
| 2 |
